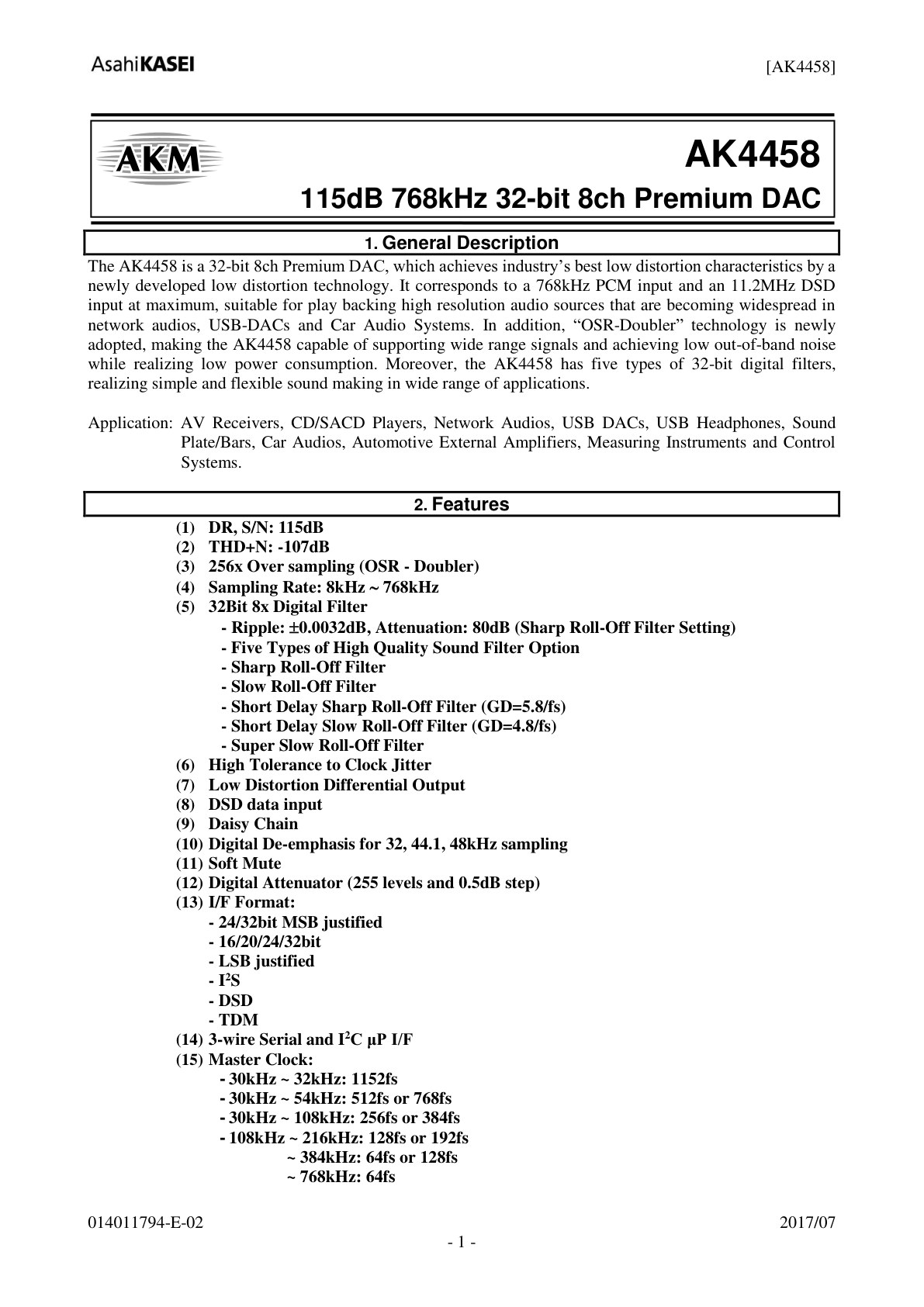

AK4458VN Datasheet – manual for this home video / media player.

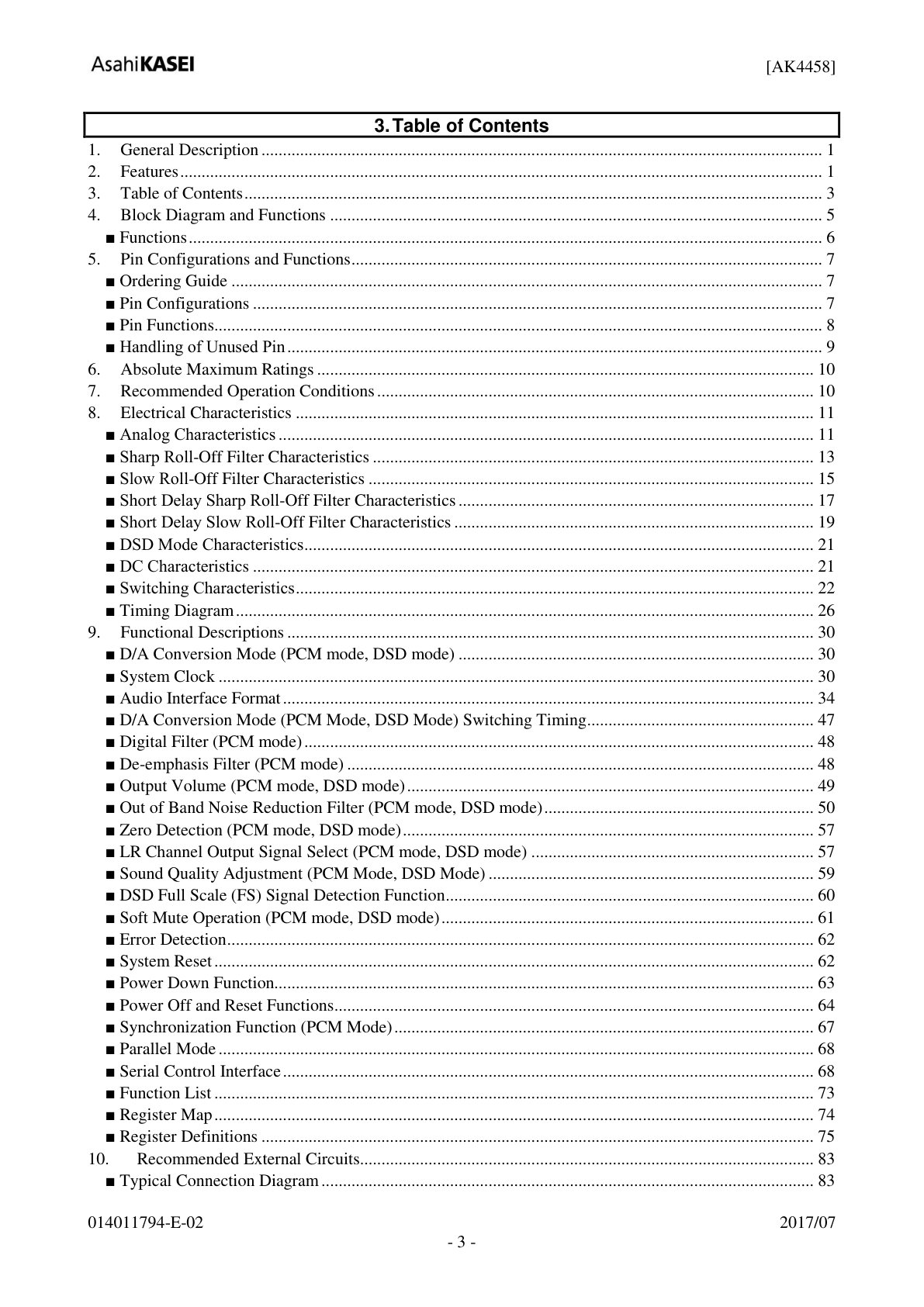

- 1. General Description (p.1)
- 2. Features (p.1)
- 3. Table of Contents (p.3)
- 4. Block Diagram and Functions (p.5)
- â– Functions (p.6)
- 5. Pin Configurations and Functions (p.7)
- â– Ordering Guide (p.7)
- â– Pin Configurations (p.7)
- â– Pin Functions (p.8)
- â– Handling of Unused Pin (p.9)
- 6. Absolute Maximum Ratings (p.10)
- 7. Recommended Operation Conditions (p.10)
- 8. Electrical Characteristics (p.11)
- â– Analog Characteristics (p.11)
- â– Sharp Roll-Off Filter Characteristics (p.13)
- â– Slow Roll-Off Filter Characteristics (p.15)
- â– Short Delay Sharp Roll-Off Filter Characteristics (p.17)
- â– Short Delay Slow Roll-Off Filter Characteristics (p.19)
- â– DSD Mode Characteristics (p.21)
- â– DC Characteristics (p.21)
- â– Switching Characteristics (p.22)
- â– Timing Diagram (p.26)
- 9. Functional Descriptions (p.30)
- â– D/A Conversion Mode (PCM mode, DSD mode) (p.30)
- …and 30 more sections in the booklet.
