Description

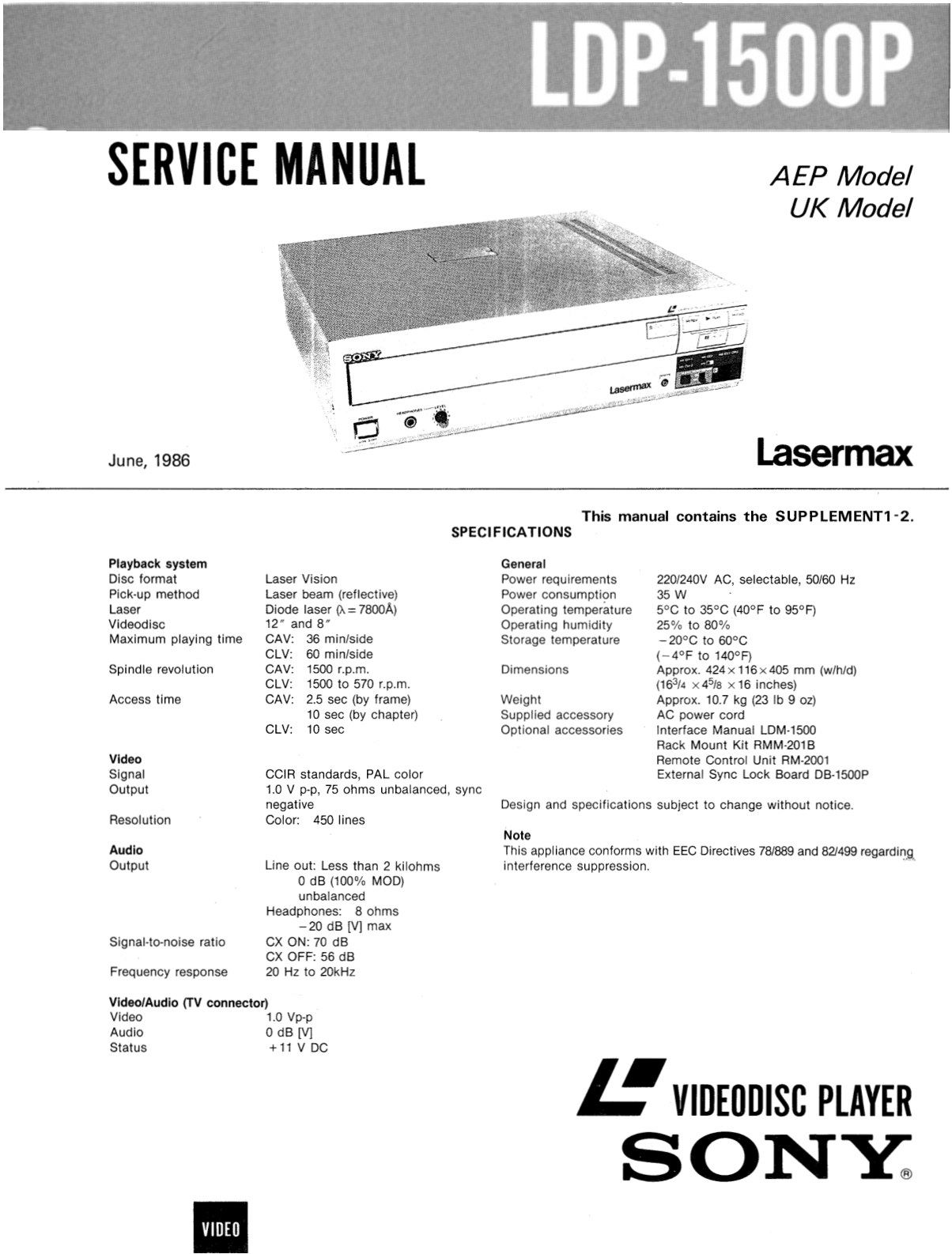

LDP-1500P-EN – service manual for this LaserDisc / CD-V.
Language: English.

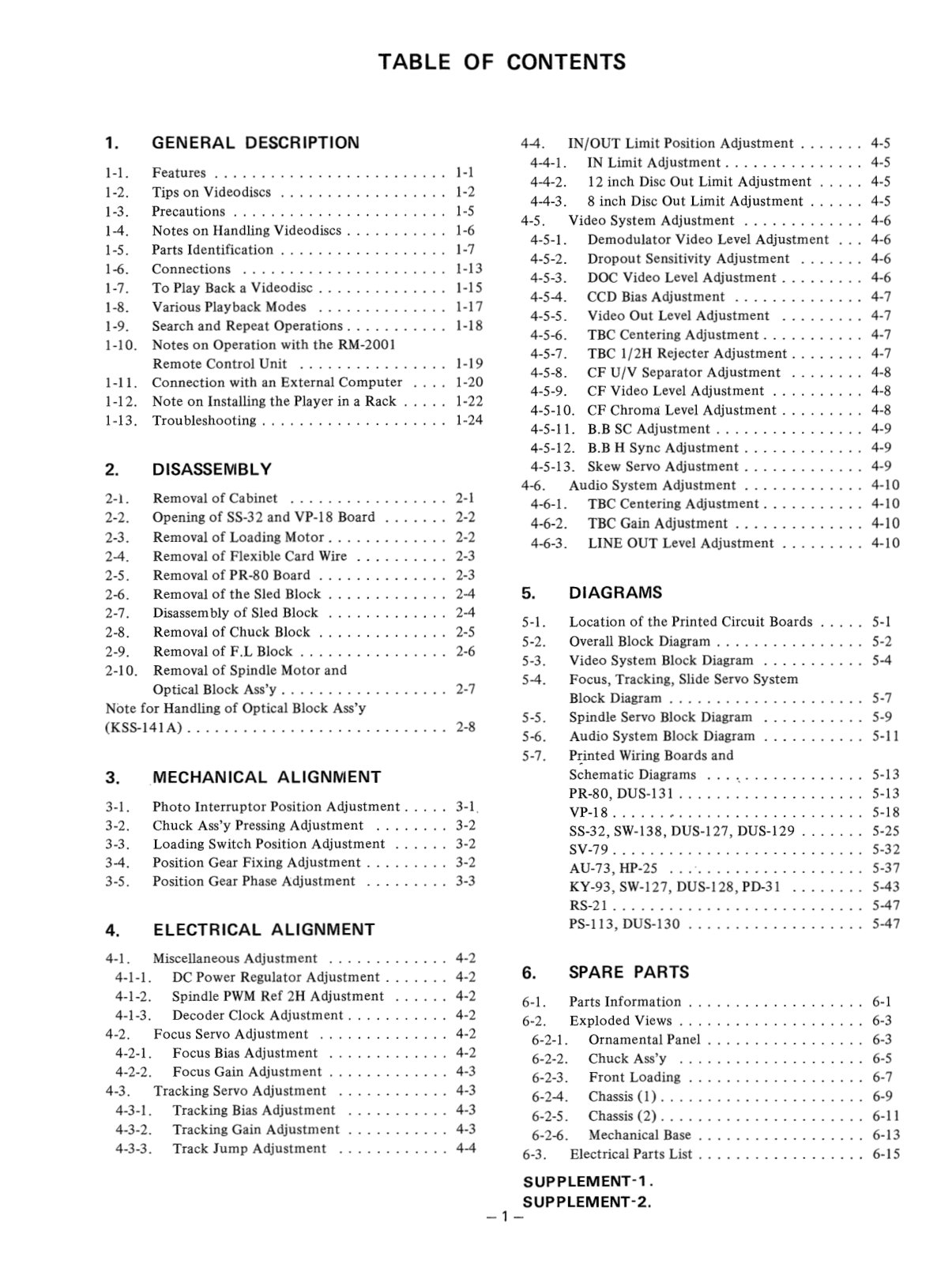

- Features . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
- Precautions (p.1-5)
- Notes on Handling Videodiscs (p.1-6)
- Connections . . . . . . . . . . . . . . . . . . . . . . 1-13
- To Play Back a Videodisc (p.1-15)
- Various Playback Modes (p.1-17)
- Search and Repeat Operations (p.1-18)
- 1-12. NoteonlnstallingthePlayerinaRack (p.1-22)
- Troubleshooting . . . . . . . . . . . . . . . . . . . . 1-24
- Removal of Cabinet (p.2-1)
- Opening of SS-32 and VP-18 Board (p.2-2)
- Removal of Loading Motor (p.2-2)
- Removal of Flexible Card Wire (p.2-3)
- Removal of the Sled Block (p.2-4)
- Photo Interruptor Position Adjustment (p.3-1)
- Chuck Ass'y Pressing Adjustment (p.3-2)
- Loading Switch Position Adjustment (p.3-2)
- Position Gear Fixing Adjustment (p.3-2)
- Position Gear Phase Adjustment (p.3-3)
- Miscellaneous Adjustment (p.4-2)
- DC Power Regulator Adjustment (p.4-2)
- Spindle PWM Ref 2H Adjustment (p.4-2)
- Decoder Clock Adjustment (p.4-2)
- Focus Servo Adjustment (p.4-2)
- …and 28 more sections in the booklet.
