Description
Sanyo VTC-5000 Betamax VCR technical/service documentation (PAL multi-destination technical data + circuit description).

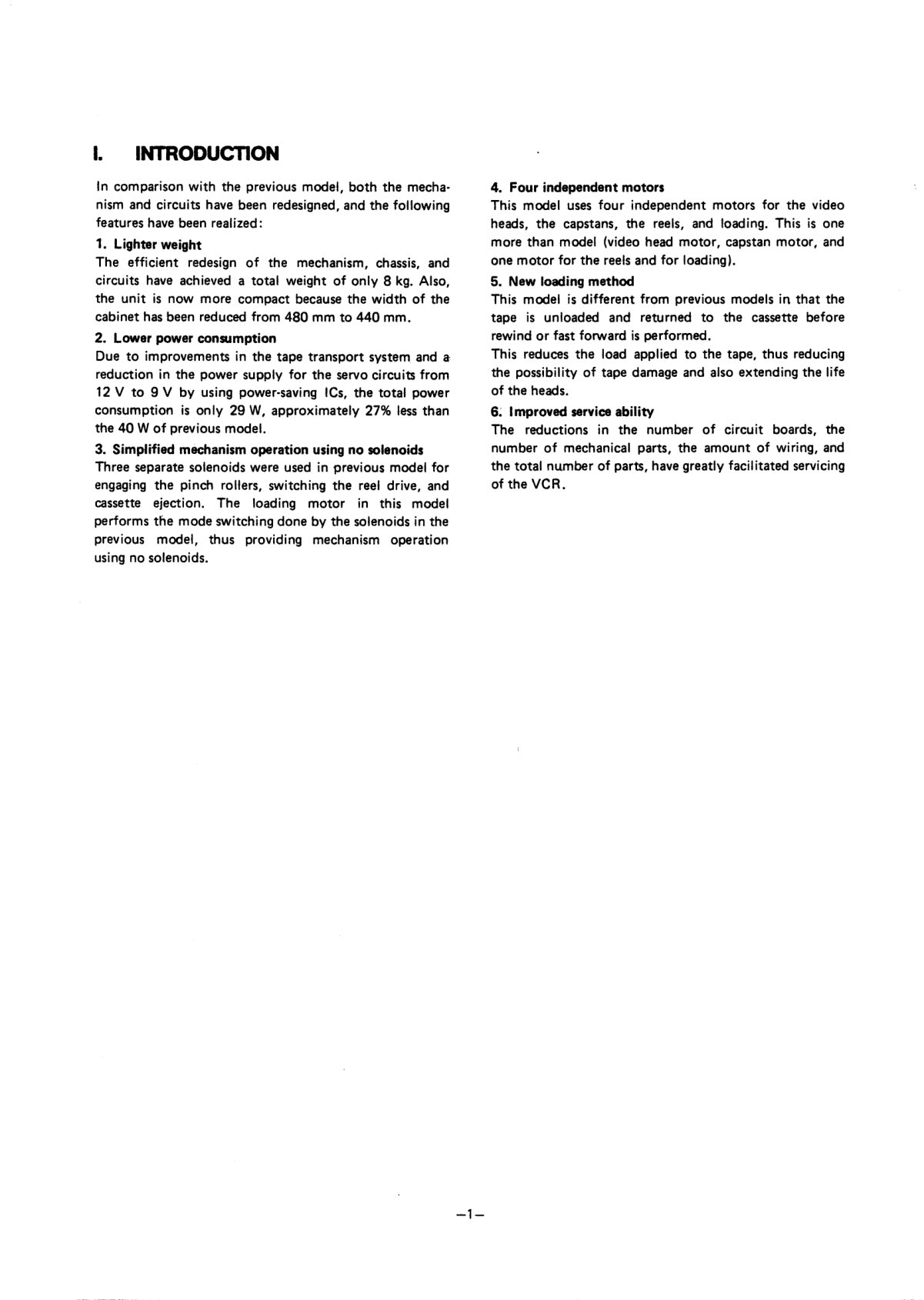

- Introduction / redesign features: lighter 8 kg compact chassis; ~29 W power; solenoid-free loading-motor mode switching; four independent motors (heads, capstan, reel, loading); unload-before-FF/REW tape path; improved serviceability
- Technical data: 2-head helical scan; 18.73 mm/s; rewind/load times; 8-day one-program timer; video/audio I/O and S/N specs; regional tuner/power table (Europe, UK, Hong Kong, Australia, South Africa, Malaysia, Ireland, New Zealand, Indonesia, etc.)

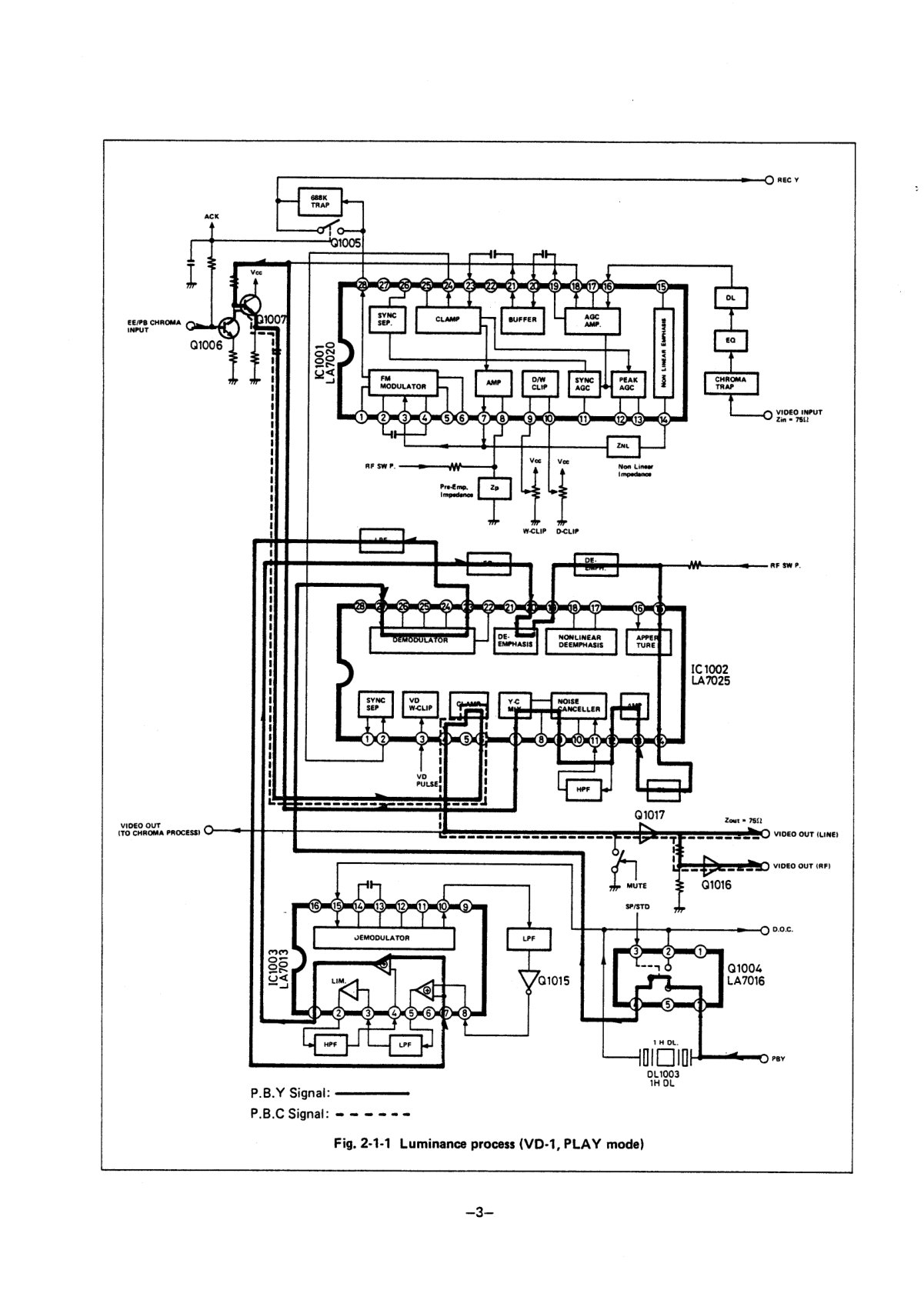

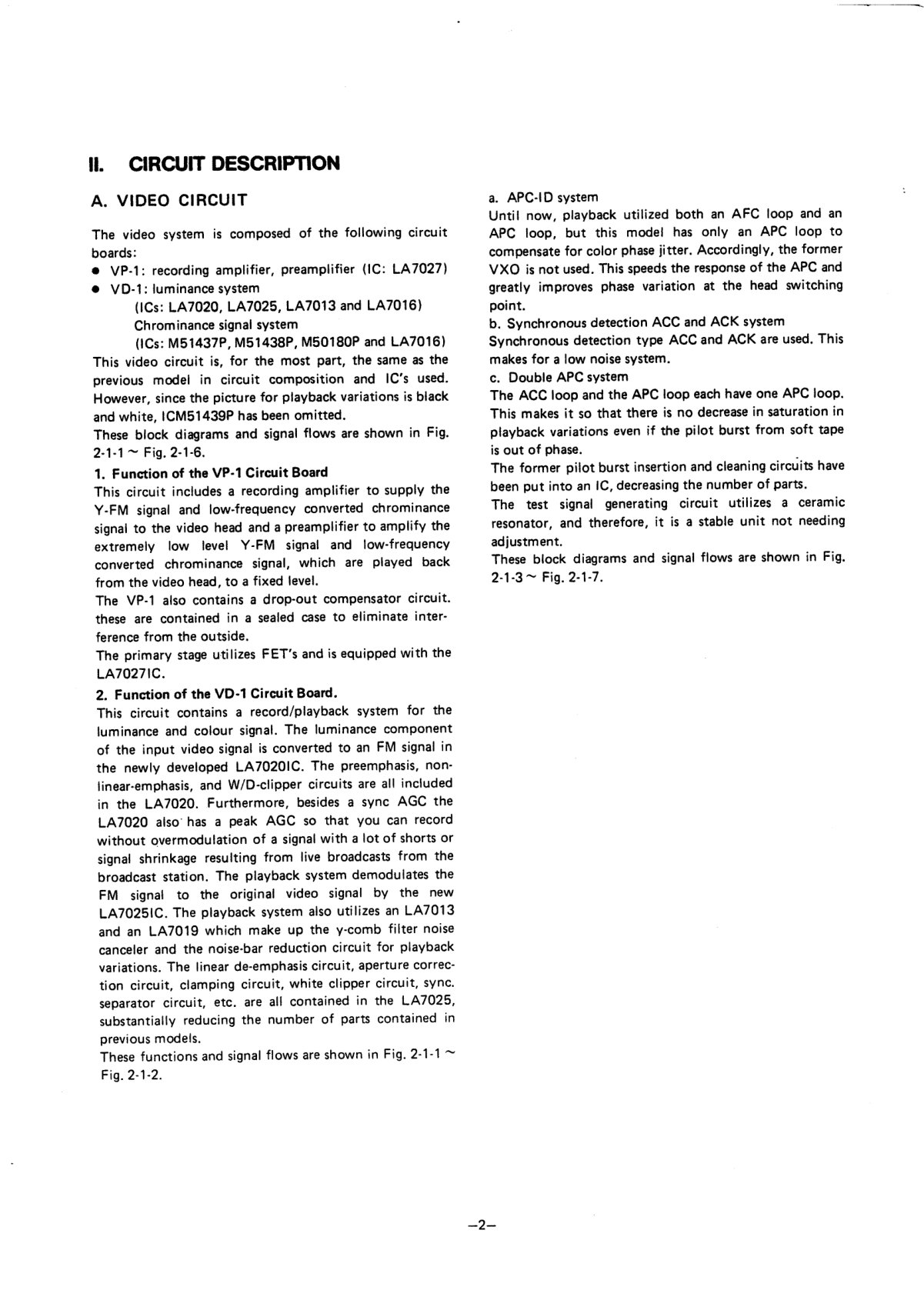

- Circuit description – video: VP-1 recording amp/preamp (LA7027) with drop-out compensator; VD-1 luminance (LA7020 / LA7025 / LA7013 / LA7019) and chrominance (M51437P / M51438P / M50180P); APC-ID; synchronous ACC/ACK; double APC; pilot burst; test signal; luminance process PLAY-mode block diagram (Fig. 2-1-1)
Pages: 134 · File size: 8.26 MB
Price covers PayPal base fee, per-page processing, and archive storage/transfer. Instant download only (no printed manuals).
