Sony BMC-100P / BMC-100PK Betamovie camcorder service manual (AEP / UK / E variants).

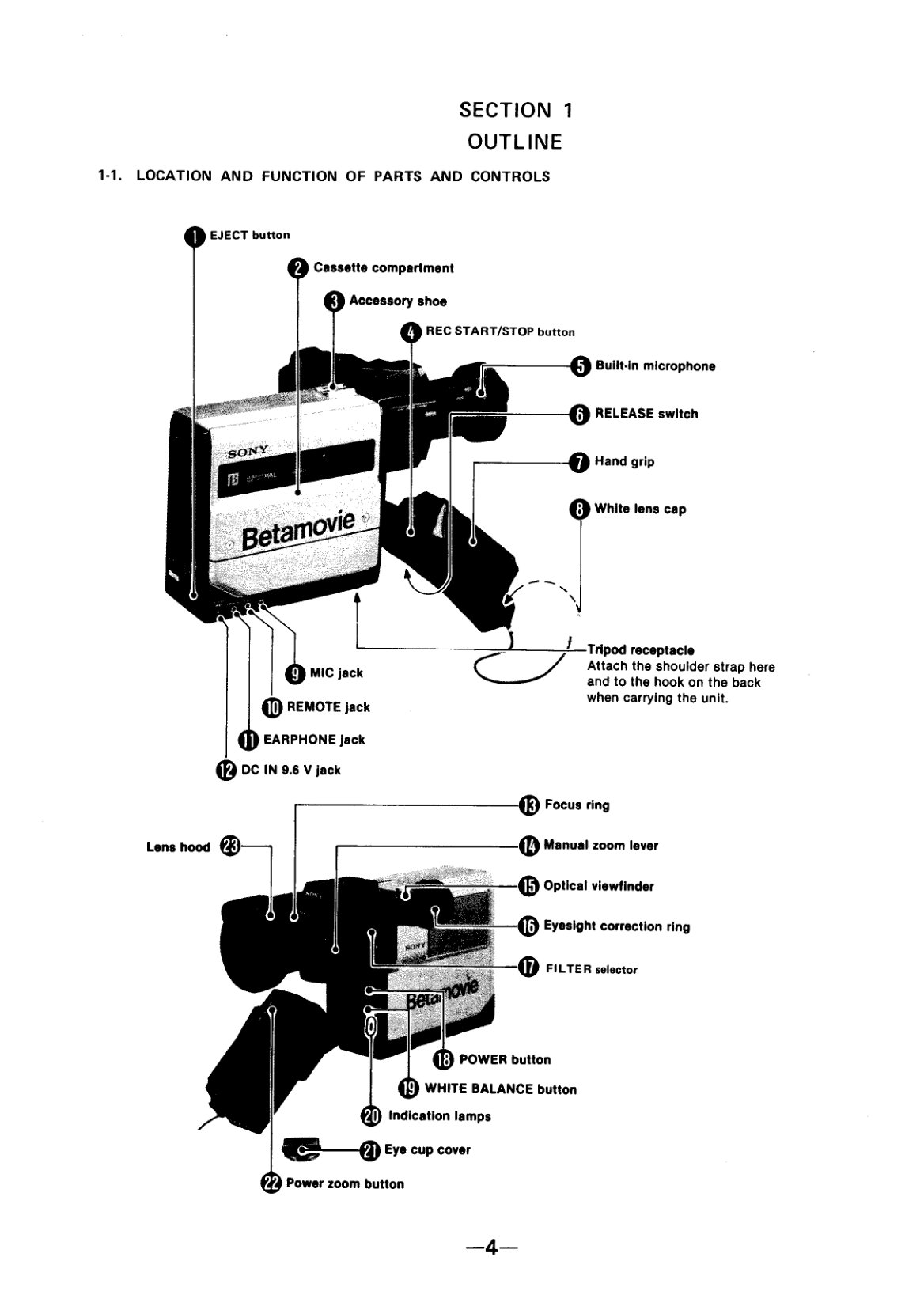

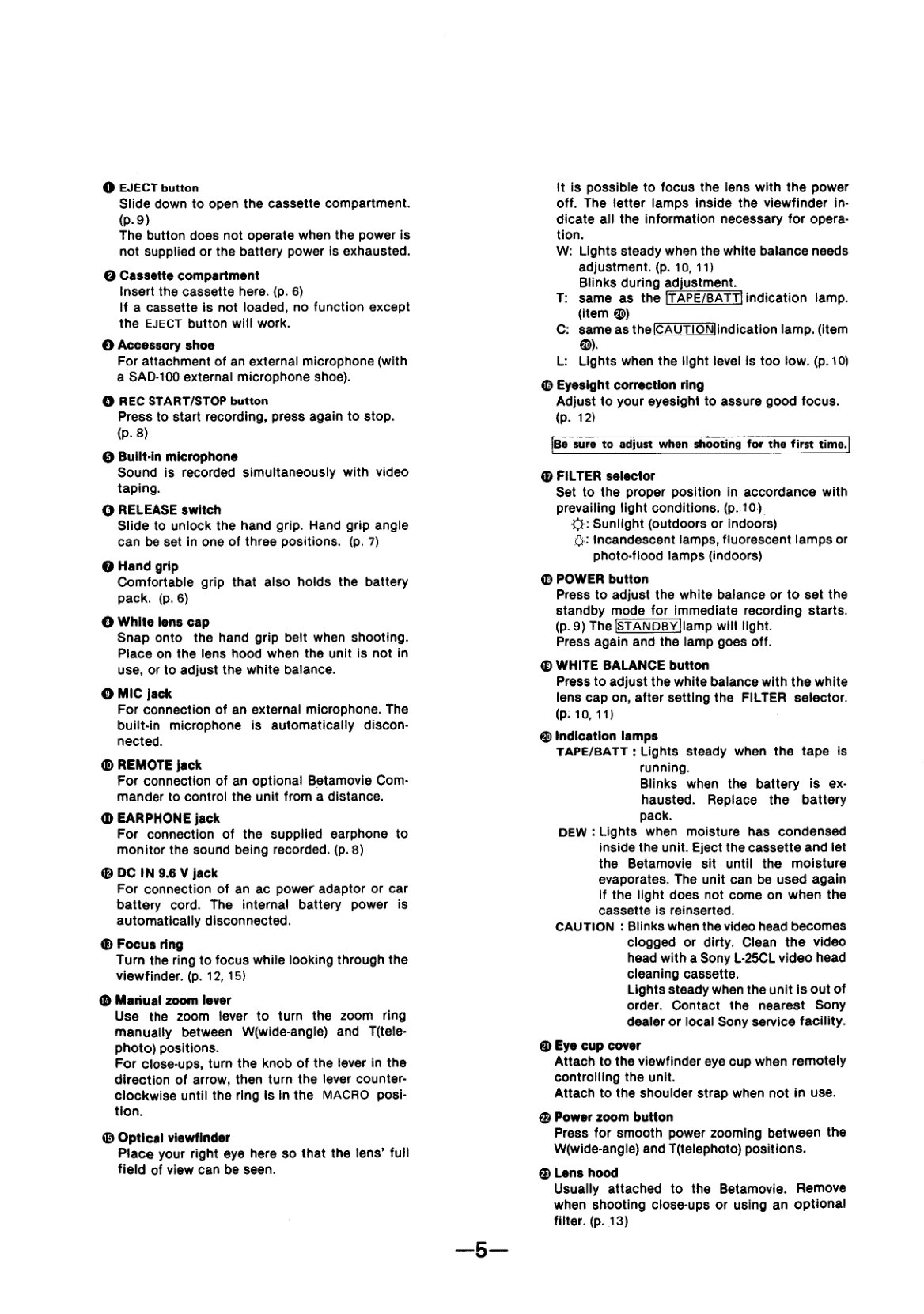

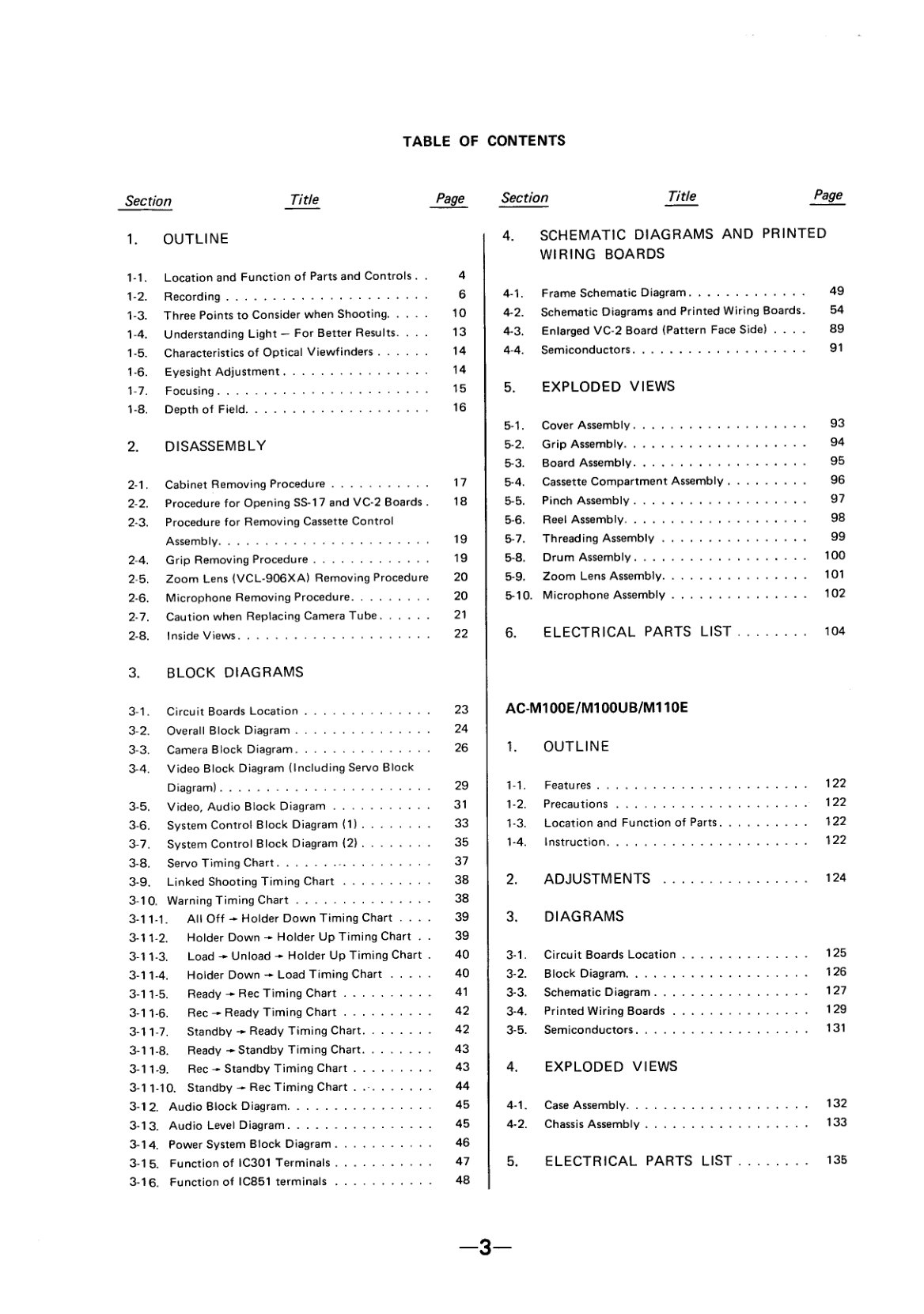

- Outline: location and function of parts/controls; recording; shooting basics; light, optical viewfinder, eyesight adjustment, focusing, depth of field
- Disassembly: cabinet, SS-17/VC-2 boards, cassette control, grip, VCL-906XA zoom lens, microphone, camera-tube replacement cautions, inside views
- Block diagrams: overall, camera, video/servo, system control, servo and mechanical timing charts, audio, power; IC301/IC851 terminal functions
- Schematics & PWBs, exploded views (cover, grip, cassette, drum, lens, mic), electrical parts list
- AC-M100E / M100UB / M110E power adaptor section: outline, adjustments, diagrams, exploded views, parts
