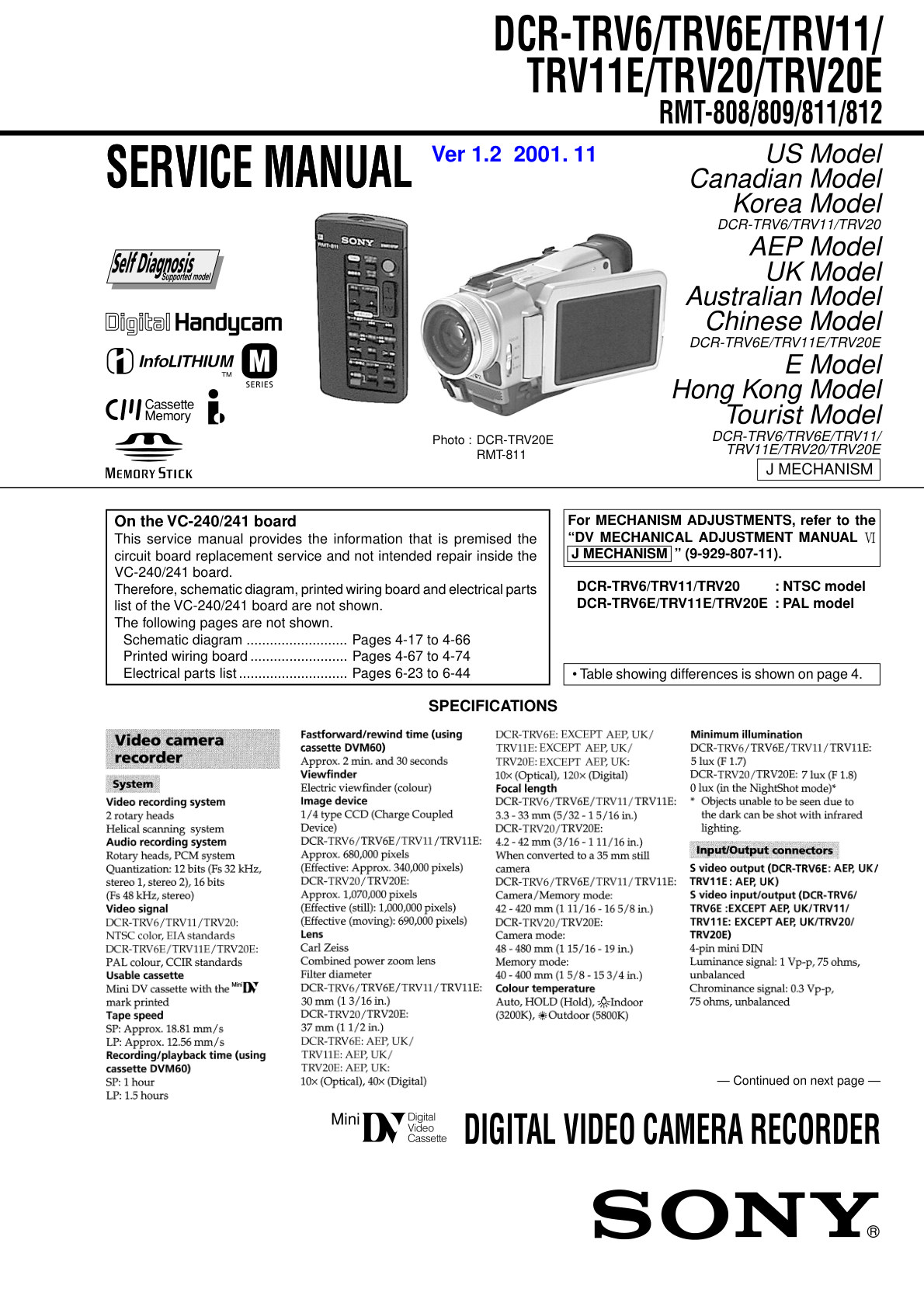

Sony DCR-TRV20 – service manual for this MiniDV camcorder.
Language: English.

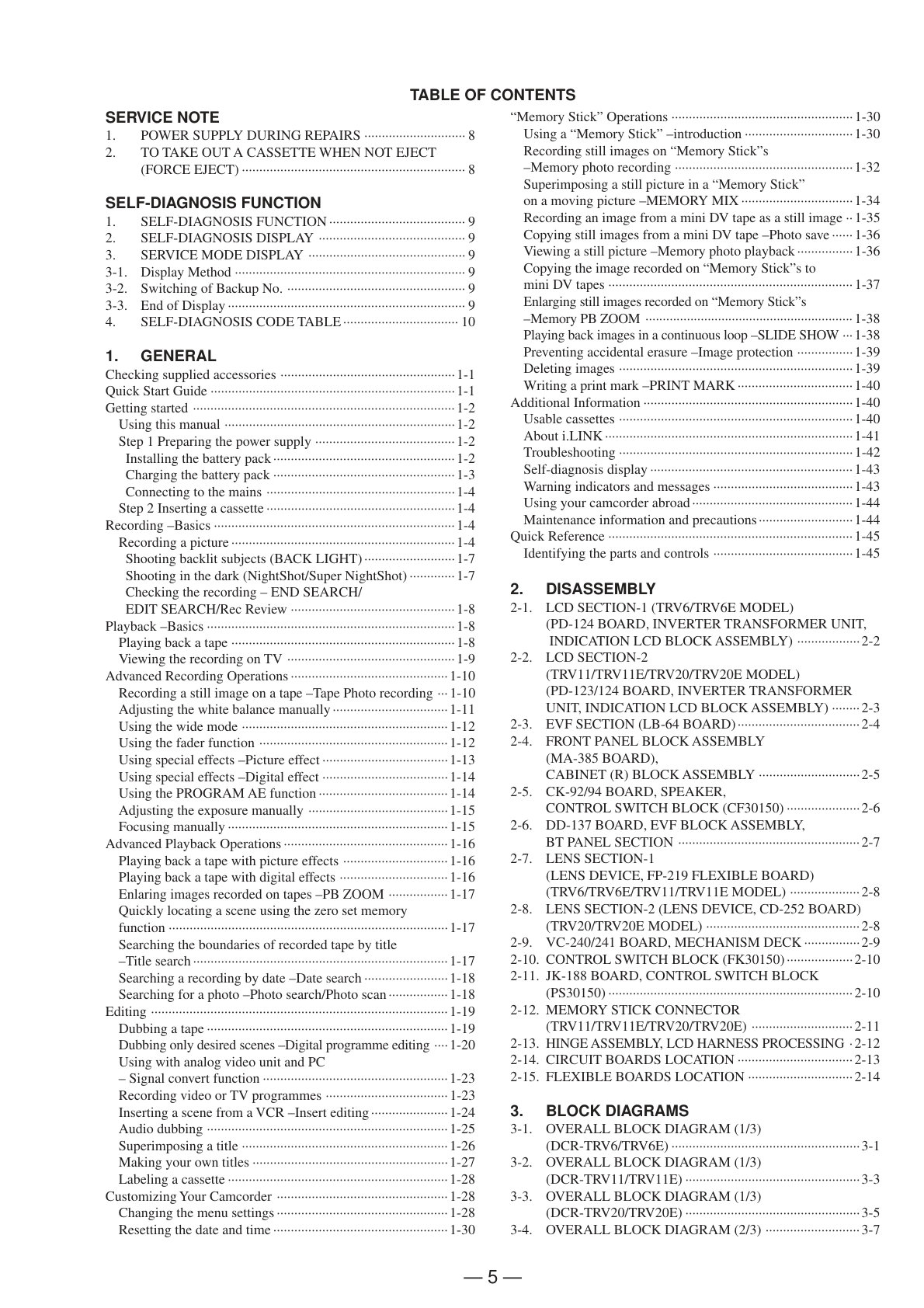

What this manual covers (from the booklet table of contents; Japanese titles shown with English gloss):
- COVER (p.1)
- Table for difference of function (p.4)
- TABLE OF CONTENTS (p.5)
- SERVICE NOTE (p.8)
- SELF-DIAGNOSIS FUNCTION (p.9)
- 1. GENERAL (p.11)
- 2. DISASSEMBLY (p.59)
- 2-1. LCD SECTION-1 (TRV6/TRV6E MODEL)
(PD-124 BOARD, INVERTER TRANSFORMER UNIT,
INDICATION LCD BLOCK ASSEMBLY) (p.60) - 2-2. LCD SECTION-2 (TRV11/TRV11E/TRV20/TRV20E MODEL)
(PD-123/124 BOARD, INVERTER TRANSFORMER UNIT,
INDICATION LCD BLOCK ASSEMBLY) (p.61) - 2-3. EVF SECTION (LB-64 BOARD) (p.62)
- 2-4. FRONT PANEL BLOCK ASSEMBLY (MA-385 BOARD),
CABINET (R) BLOCK ASSEMBLY (p.63) - 2-5. CK-92/94 BOARD, SPEAKER, CONTROL SWITCH BLOCK (CF30150) (p.64)
- 2-6. DD-137 BOARD, EVF BLOCK ASSEMBLY, BT PANEL SECTION (p.65)
- 2-7. LENS SECTION-1 (LENS DEVICE, FP-219 FLEXIBLE BOARD)
(TRV6/TRV6E/TRV11/TRV11E MODEL) (p.66) - 2-8. LENS SECTION-2 (LENS DEVICE, CD-252 BOARD) (TRV20/TRV20E MODEL) (p.66)
- 2-9. VC-240/241 BOARD, MECHANISM DECK (p.67)
- 2-10.CONTROL SWITCH BLOCK (FK30150) (p.68)
- 2-11.JK-188 BOARD, CONTROL SWITCH BLOCK (PS30150) (p.68)
- 2-12.MEMORY STICK CONNECTOR (TRV11/TRV11E/TRV20/TRV20E) (p.69)
- 2-13.HINGE ASSEMBLY, LCD HARNESS PROCESSING (p.70)
- 2-14.CIRCUIT BOARDS LOCATION (p.71)
- 2-15.FLEXIBLE BOARDS LOCATION (p.72)
- 3. BLOCK DIAGRAMS (p.73)
- 3-1. OVERALL BLOCK DIAGRAM (1/3) (DCR-TRV6/TRV6E) (p.73)
- …and 97 more sections in the booklet.
Pages: 319 · File size: 44.93 MB
Price covers PayPal base fee, per-page processing, and archive storage/transfer. Instant download only (no printed manuals).
