Description
Sony EDC-55 ED Beta camcorder (camera + VCR block) service manual.

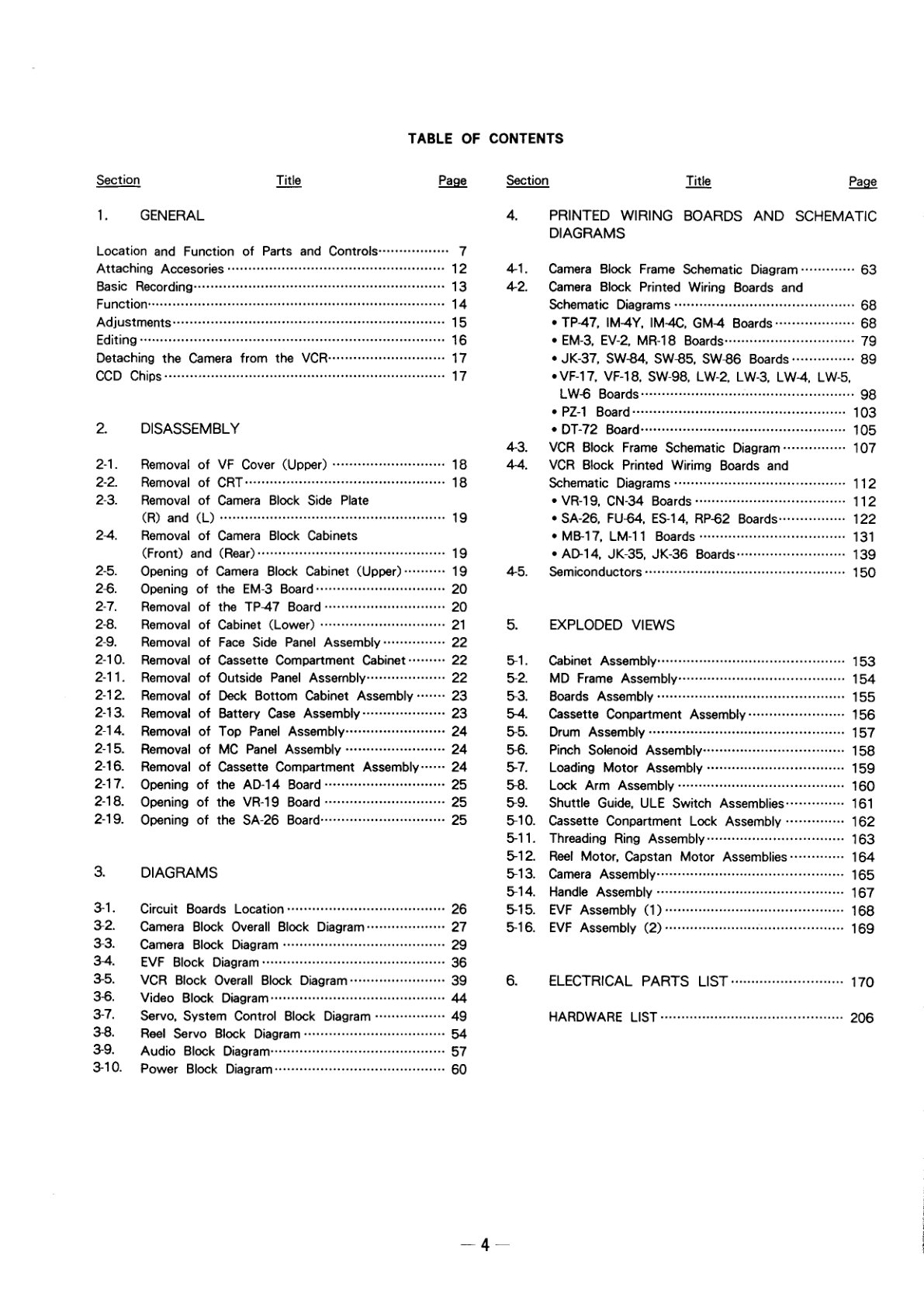

- General: parts/controls, accessories, basic recording, functions, adjustments, editing, detaching camera from VCR, CCD chips
- Disassembly of viewfinder, camera block, boards (EM-3, TP-47, AD-14, VR-19, SA-26), cassette compartment, battery case
- Diagrams: camera / EVF / VCR overall, video, servo/system control, reel servo, audio, power
- PWB & schematics for camera and VCR blocks; semiconductors
- Exploded views (cabinet, drum, motors, EVF, camera); electrical parts & hardware
- Camera block & mechanical adjustments: EVR/iris/Y/chroma, electronic viewfinder, head disk/drum/capstan, tape path / tracking
Pages: 239 · File size: 102.87 MB
Price covers PayPal base fee, per-page processing, and archive storage/transfer. Instant download only (no printed manuals).
