Description

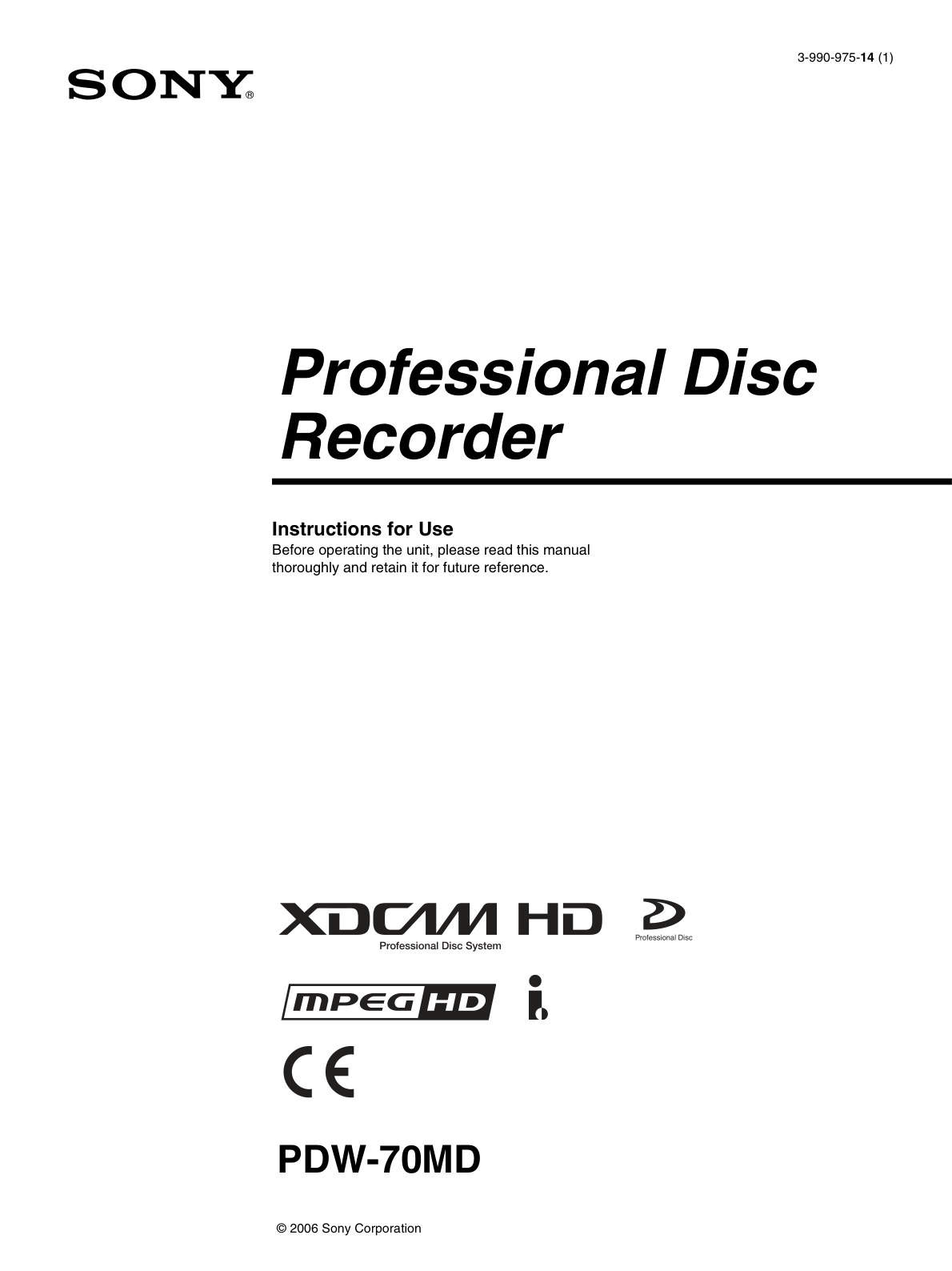

Sony PDW-70MD – owner / operating manual for this HDCAM / XDCAM VTR.
Language: English.

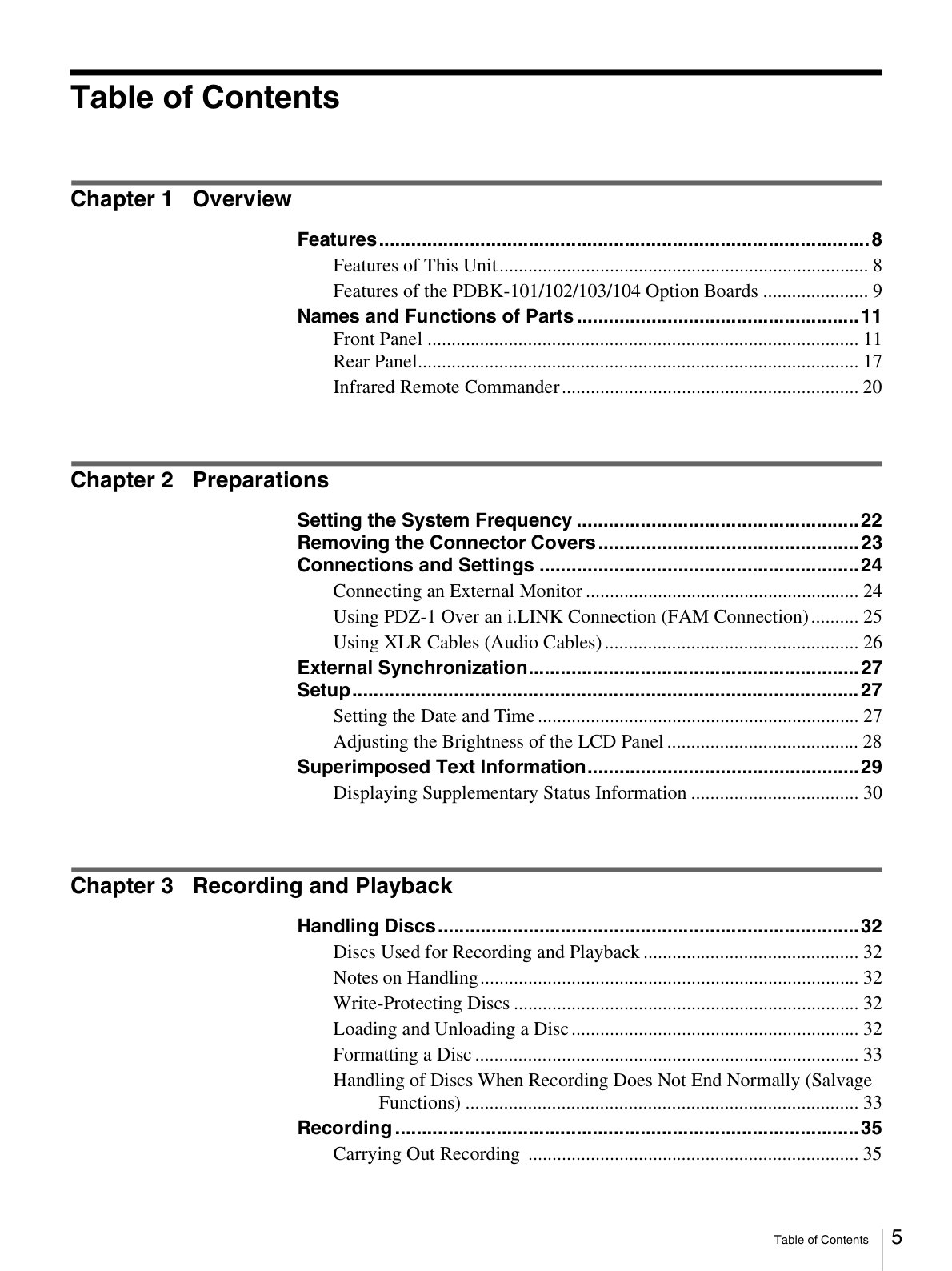

- Table of Contents (p.5)
- Chapter 1 Overview (p.8)

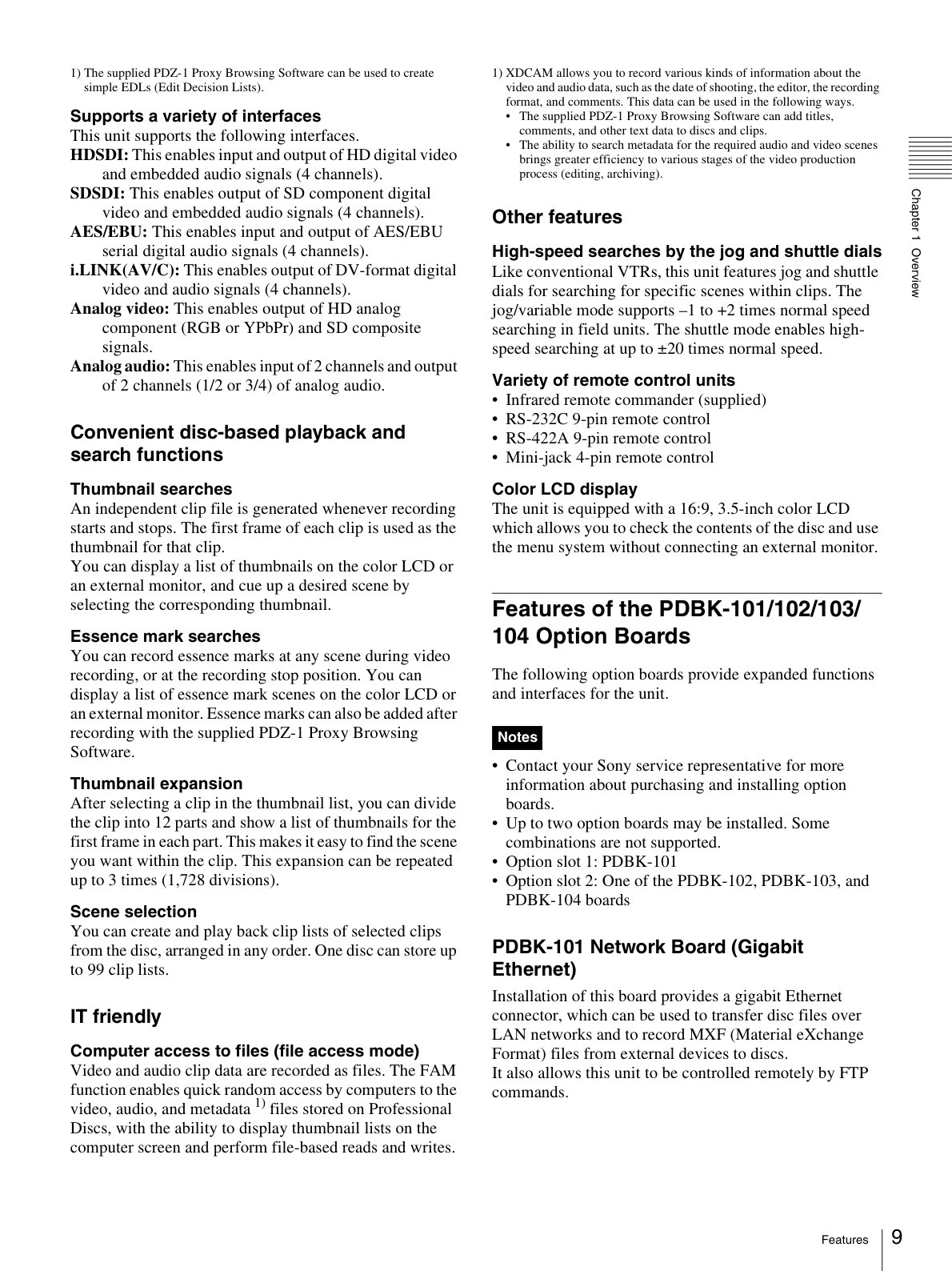

- Features (p.8)
- Features of This Unit (p.8)
- Features of the PDBK-101/102/103/104 Option Boards (p.9)
- Names and Functions of Parts (p.11)
- Front Panel (p.11)
- Rear Panel (p.17)
- Infrared Remote Commander (p.20)
- Chapter 2 Preparations (p.22)
- Setting the System Frequency (p.22)
- Removing the Connector Covers (p.23)
- Connections and Settings (p.24)
- Connecting an External Monitor (p.24)
- Using PDZ-1 Over an i.LINK Connection (FAM Connection) (p.25)
- Using XLR Cables (Audio Cables) (p.26)
- External Synchronization (p.27)
- Setup (p.27)
- Setting the Date and Time (p.27)
- Adjusting the Brightness of the LCD Panel (p.28)
- Superimposed Text Information (p.29)
- Displaying Supplementary Status Information (p.30)
- Chapter 3 Recording and Playback (p.32)
- Handling Discs (p.32)
- …and 69 more sections in the booklet.
Pages: 92 · File size: 2.38 MB
Price covers PayPal base fee, per-page processing, and archive storage/transfer. Instant download only (no printed manuals).
