Description
Sony SL-5400 (also SL-5600 / SL-5800 / SL-5000 / SL-5010 / SL-5100) Betamax VCR service bulletin / replacement procedure for REW expendable parts Kit G (T-988-022-81).
- Kit contents: REW idler, Midway/FF pulleys, reel tables, brake assemblies, PB press arm, tension spring, ratchet claw, Midway pulley shaft
- Model/serial compatibility matrix for which parts to install

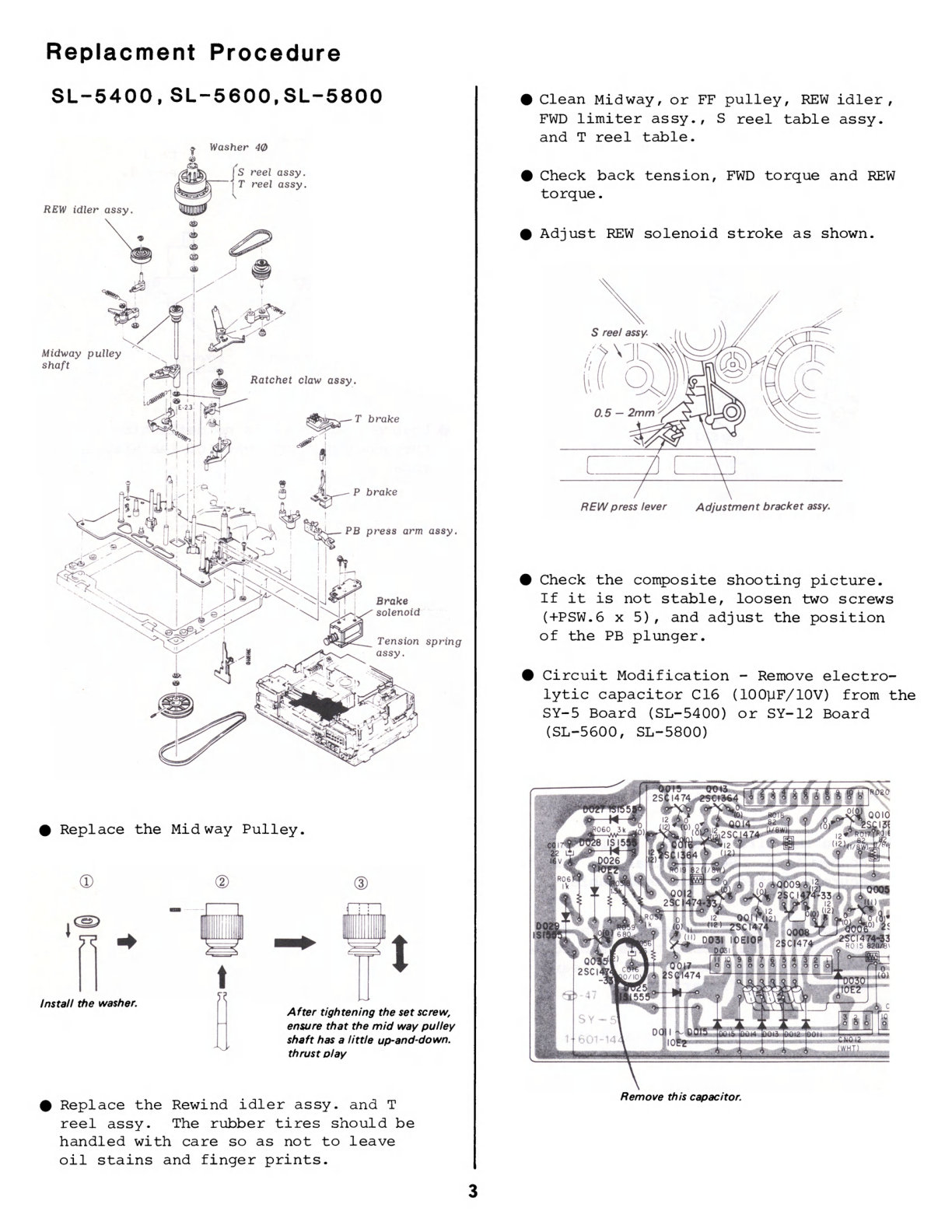

- Replacement of Midway pulley, REW idler, T reel assembly; cleaning of drive pulleys/idlers
- Back tension / FWD / REW torque checks; REW solenoid stroke and PB plunger adjustments
- Circuit note: remove electrolytic C16 on SY-5 (SL-5400) or SY-12 (SL-5600/5800)
Pages: 88 · File size: 56.55 MB
Price covers PayPal base fee, per-page processing, and archive storage/transfer. Instant download only (no printed manuals).
