Description

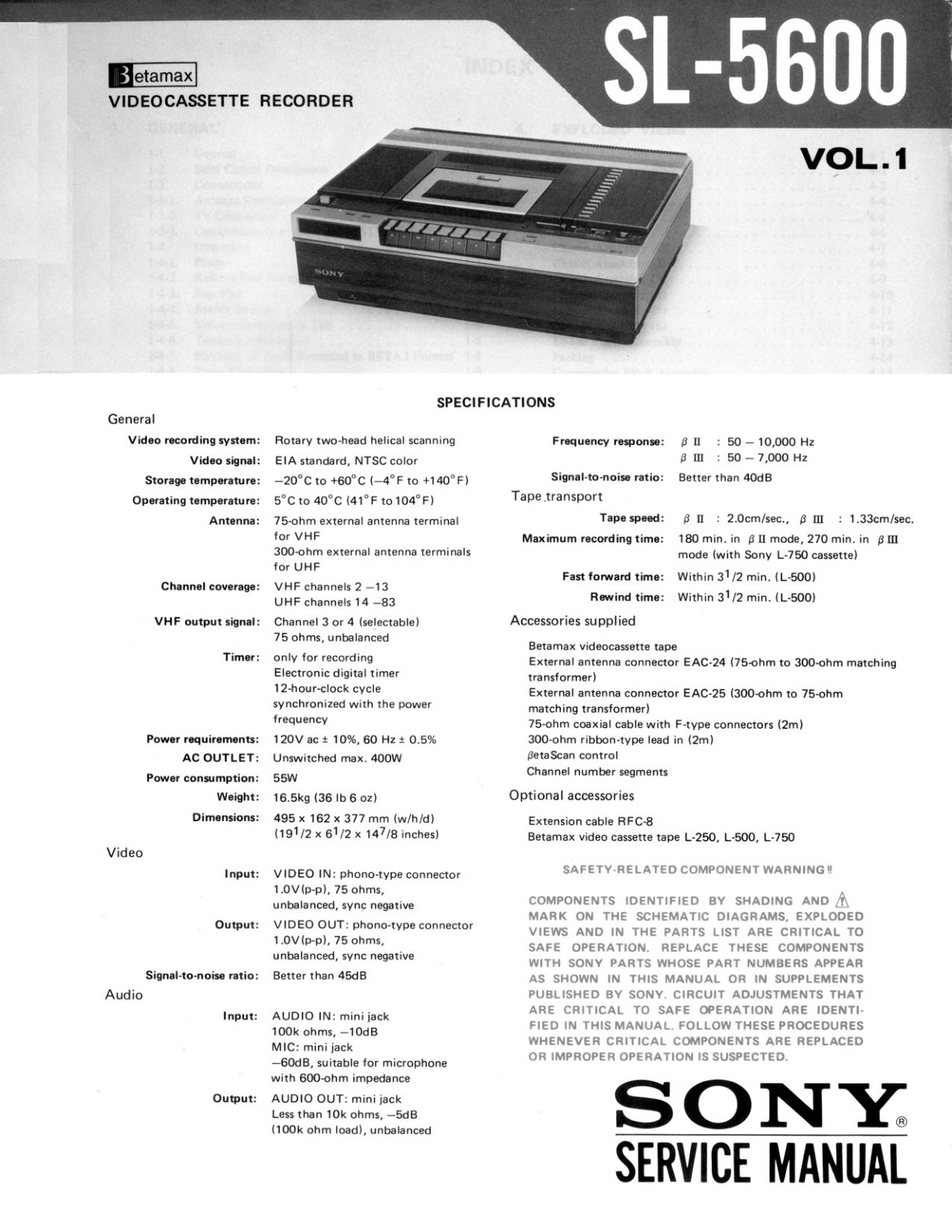

Sony SL-5600 Betamax VCR service/technical manual (BetaScan, variable slow, freeze frame).

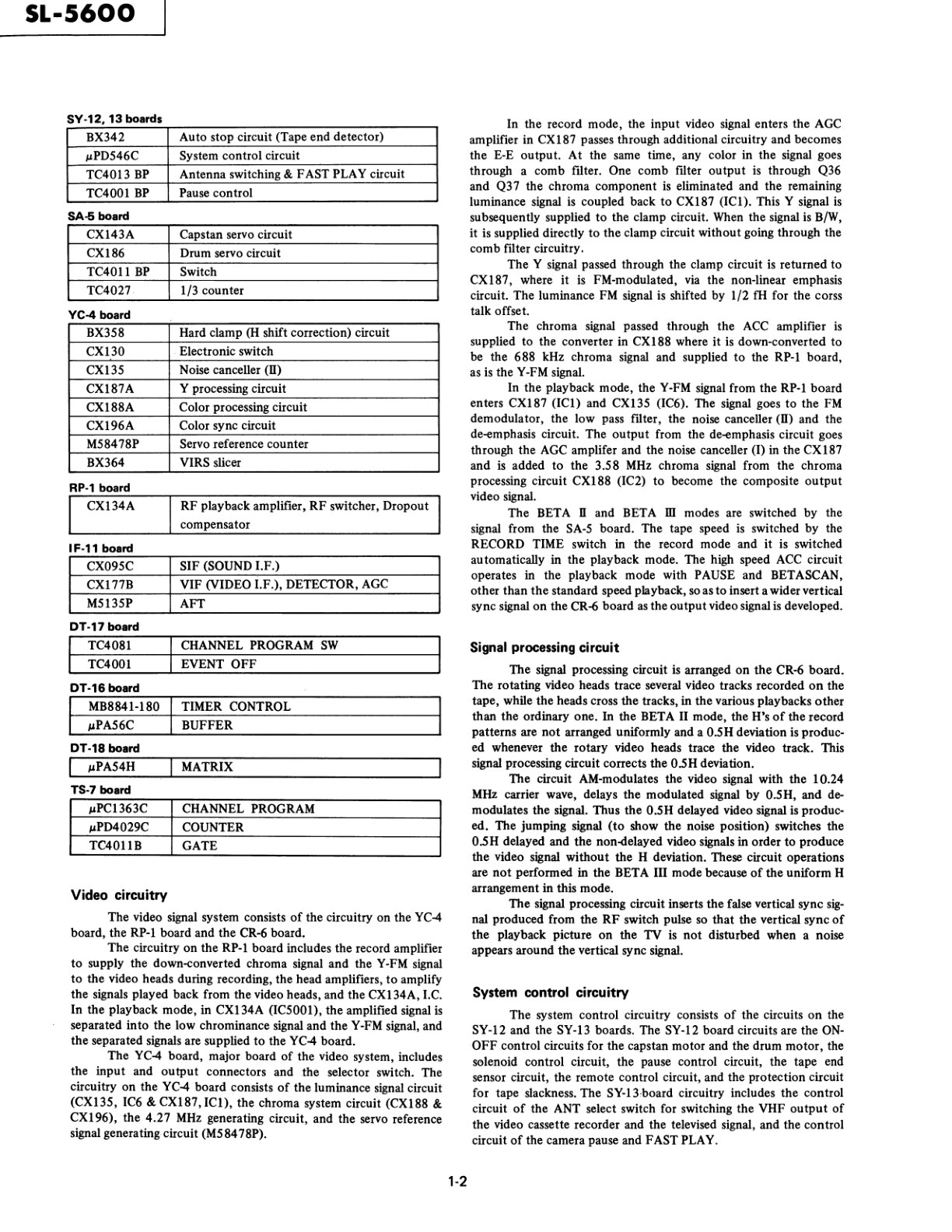

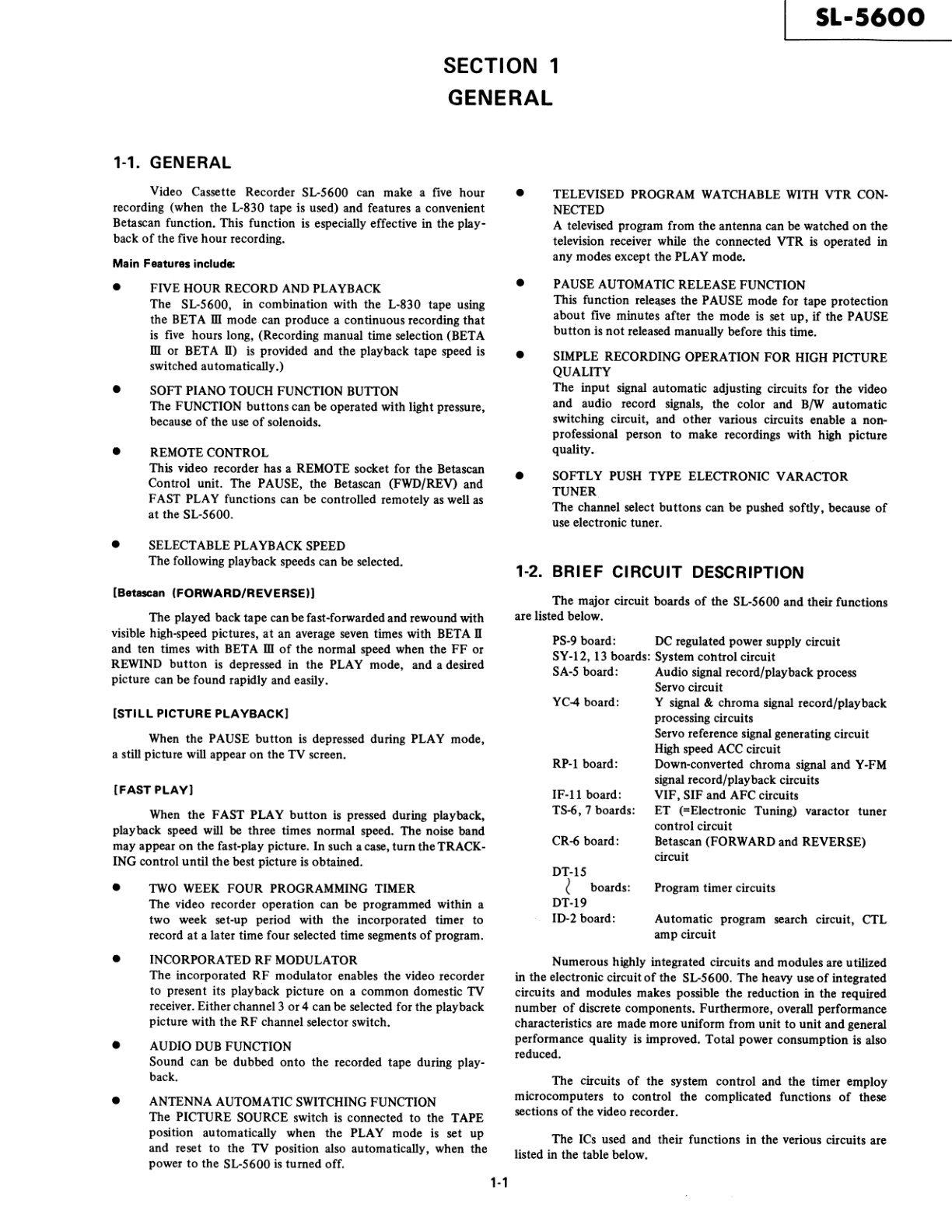

- General: brief circuit description; antenna/TV/CATV connections; operation (pause, FF/REW, Betascan, fast play, search, safety tab, tracking, BETA I playback, timer)
- Disassembly: cabinet, tuner-IF, timer; YC-4 / SA-5 / PS-9 board checks

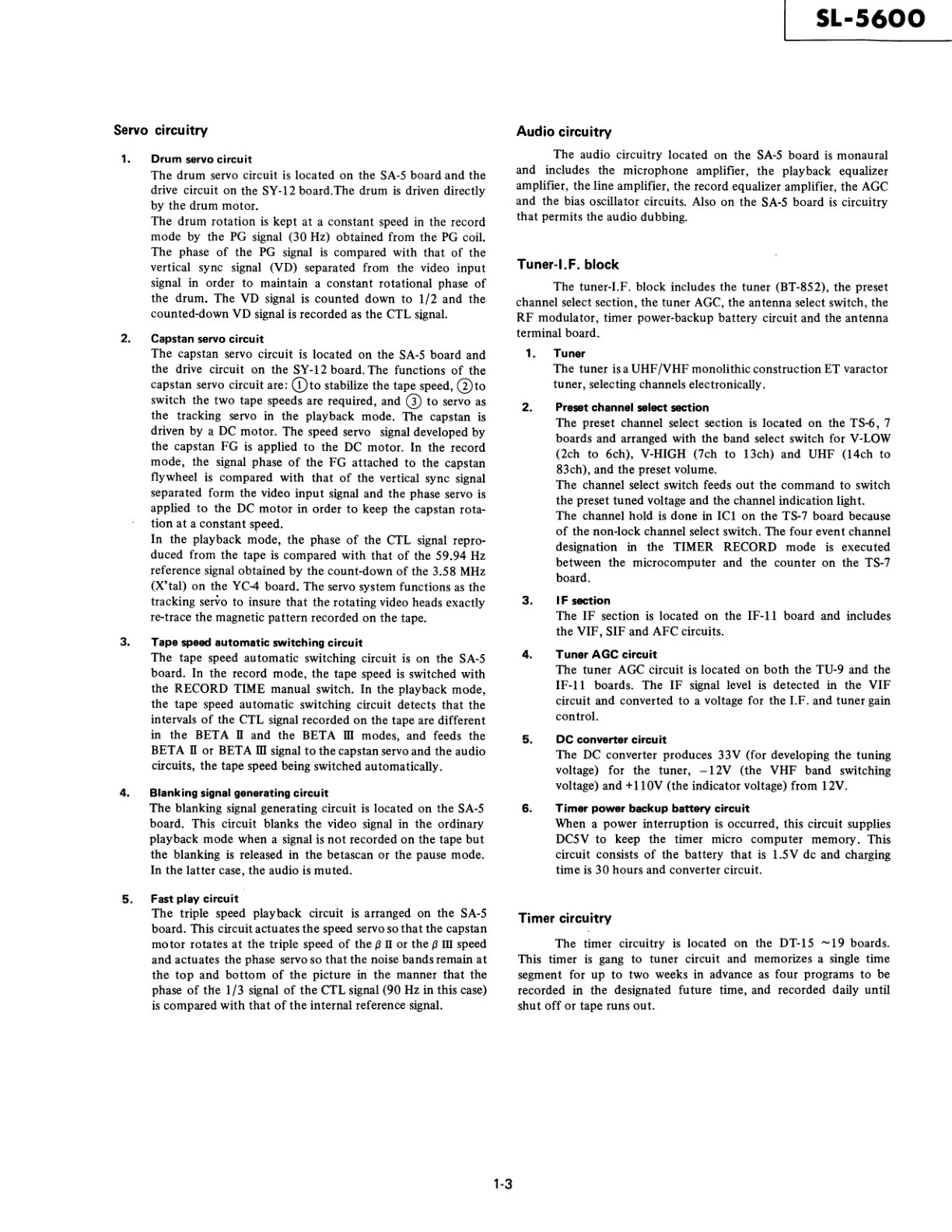

- Block diagrams & timing charts (video, audio, servo, Betascan drum speed, capstan βI/II/III, system control, timer, tuner-IF)
- PWB & schematics (YC-4, CR-6, RP-1, SA-5, SY-12/13, IF-11, DT boards, etc.)
- Exploded views and electrical parts list
Pages: 148 · File size: 34.41 MB
Price covers PayPal base fee, per-page processing, and archive storage/transfer. Instant download only (no printed manuals).
