Description
Sony SL-5800 Betamax VCR service/technical manual.

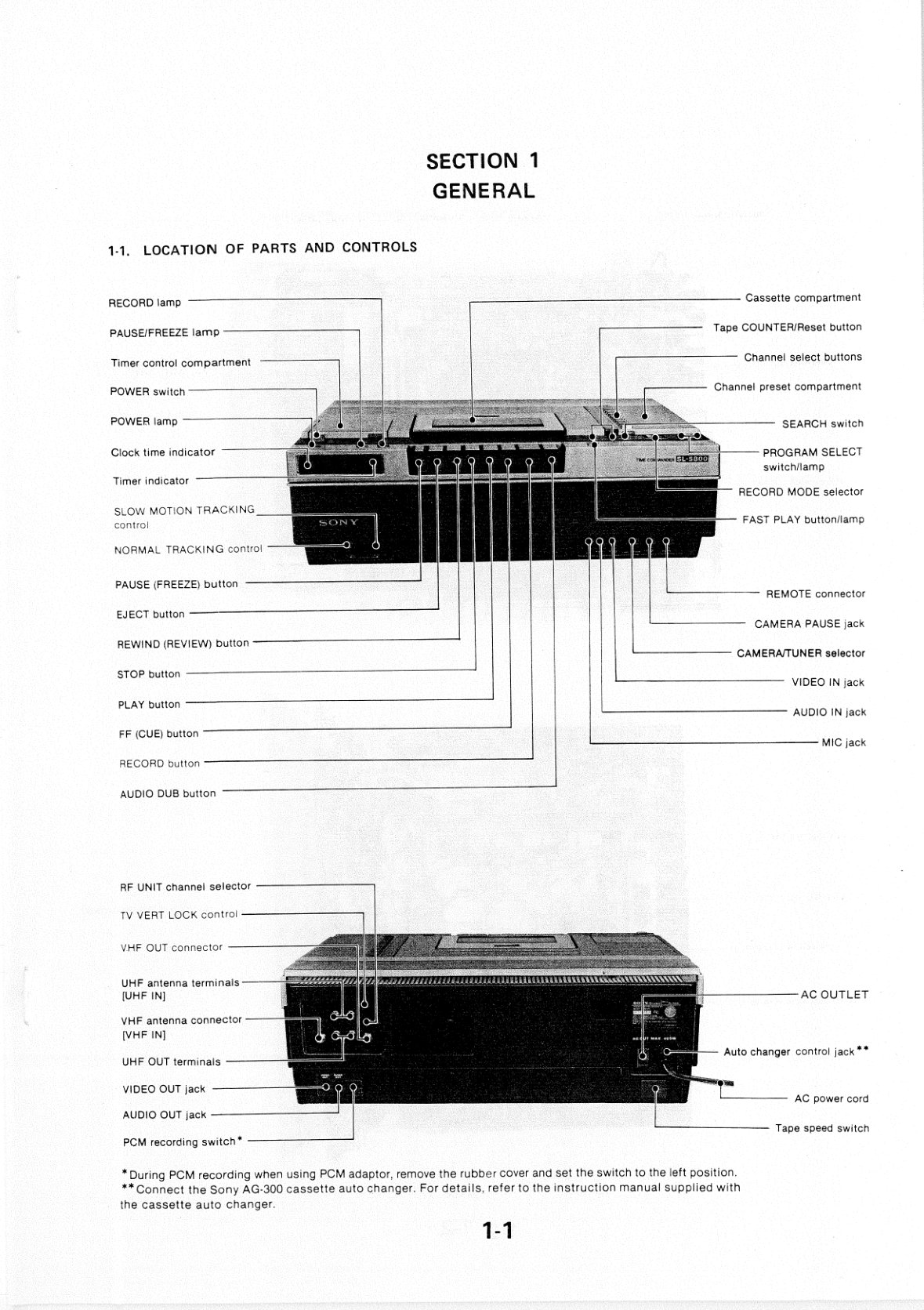

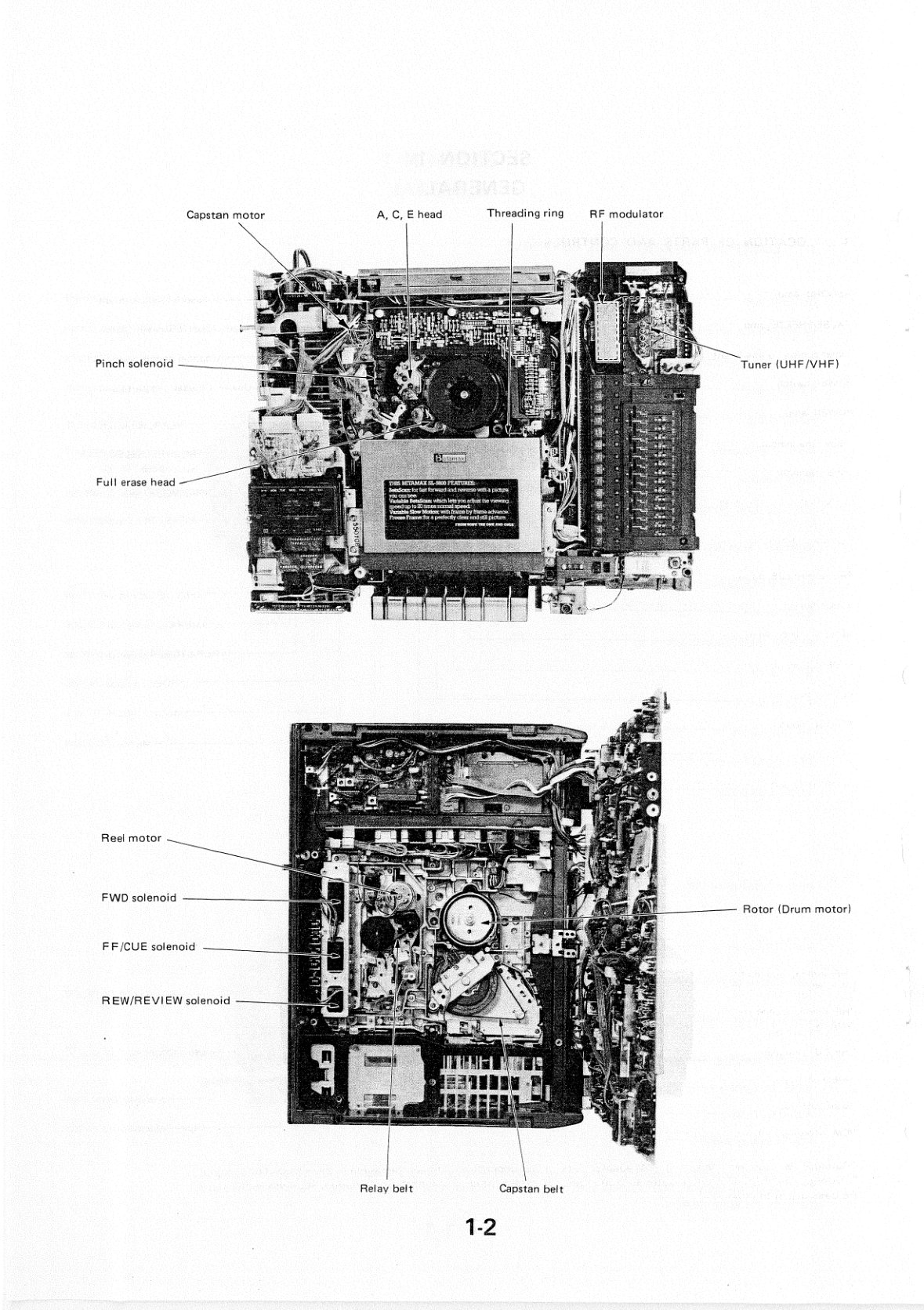

- General: location of parts/controls; antenna/TV connections; TV adjustment; insert/remove cassette; record/playback; record one program while viewing another; camera recording; audio dubbing; timer recording
- Disassembly: cabinet, tuner-IF, timer; YC-14 / SA-7 / PS-12 board checks

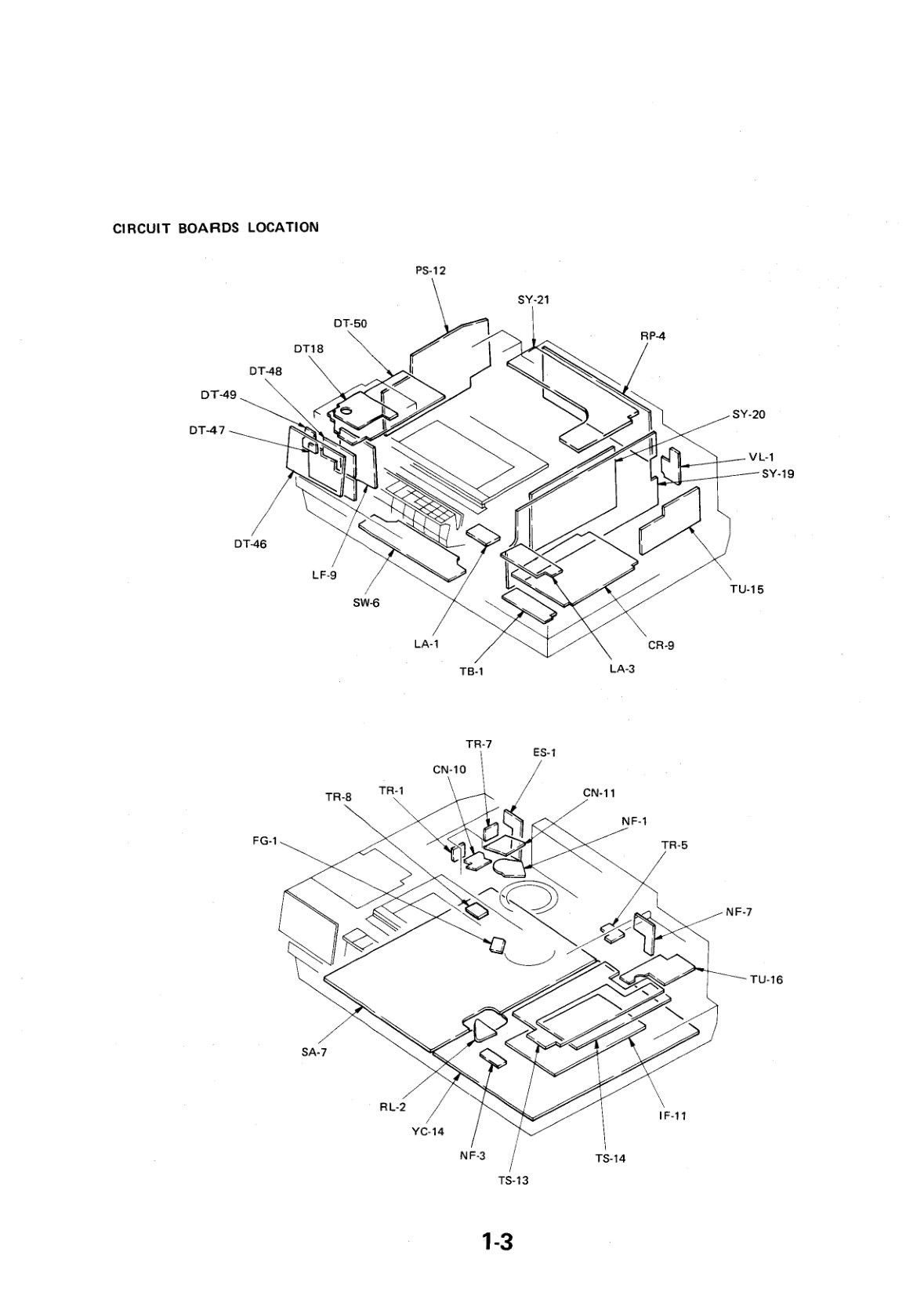

- PWB & schematics (YC-14, RP-4, CR-9, VL-1, SA-7, SY-19-21, TS/IF/TU, DT, PS-12)
- Exploded views (cabinet, cassette lift, function, drum, chassis) and parts list (incl. commander block)
