Description

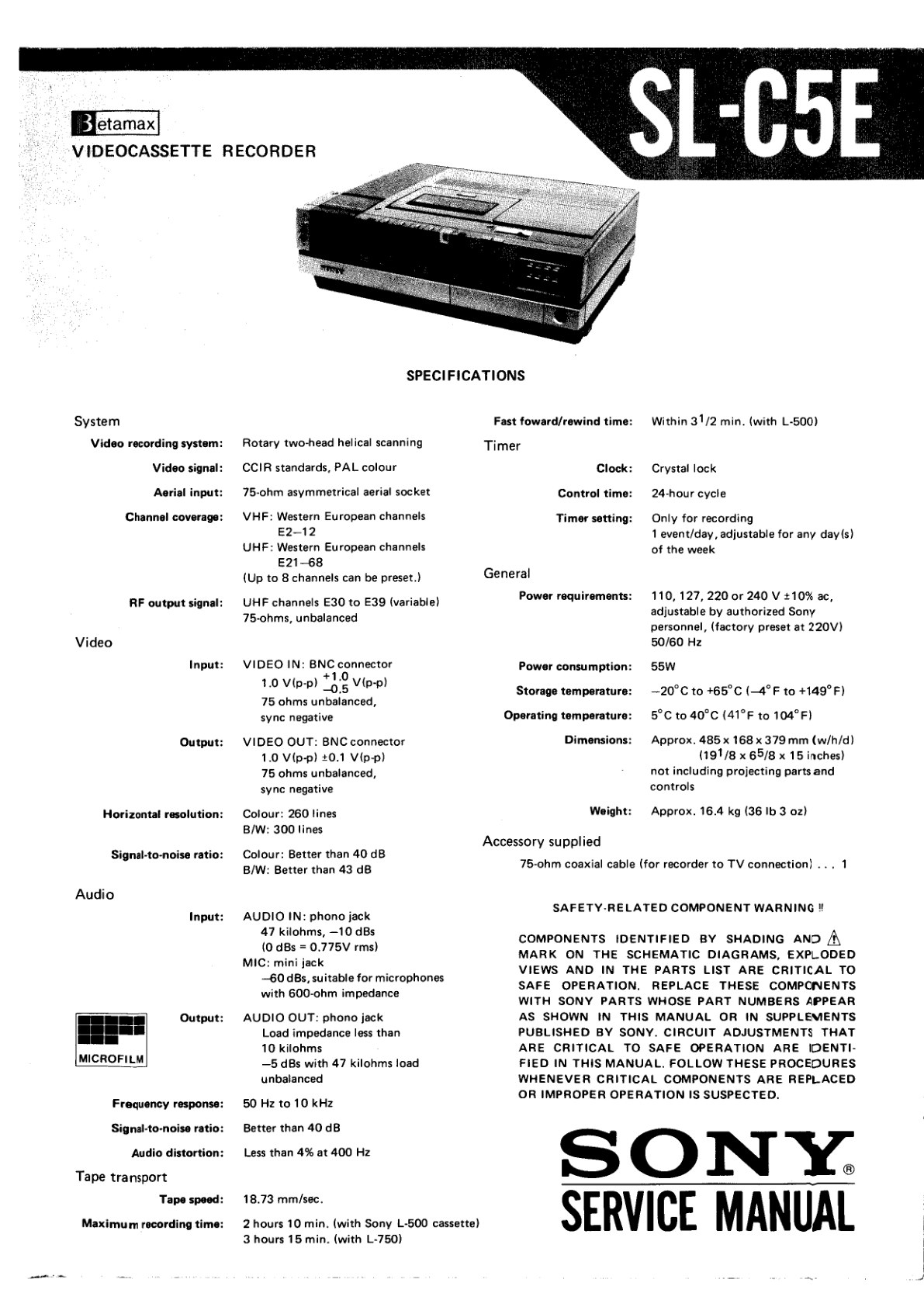

Sony SL-C5E Betamax VCR service manual.

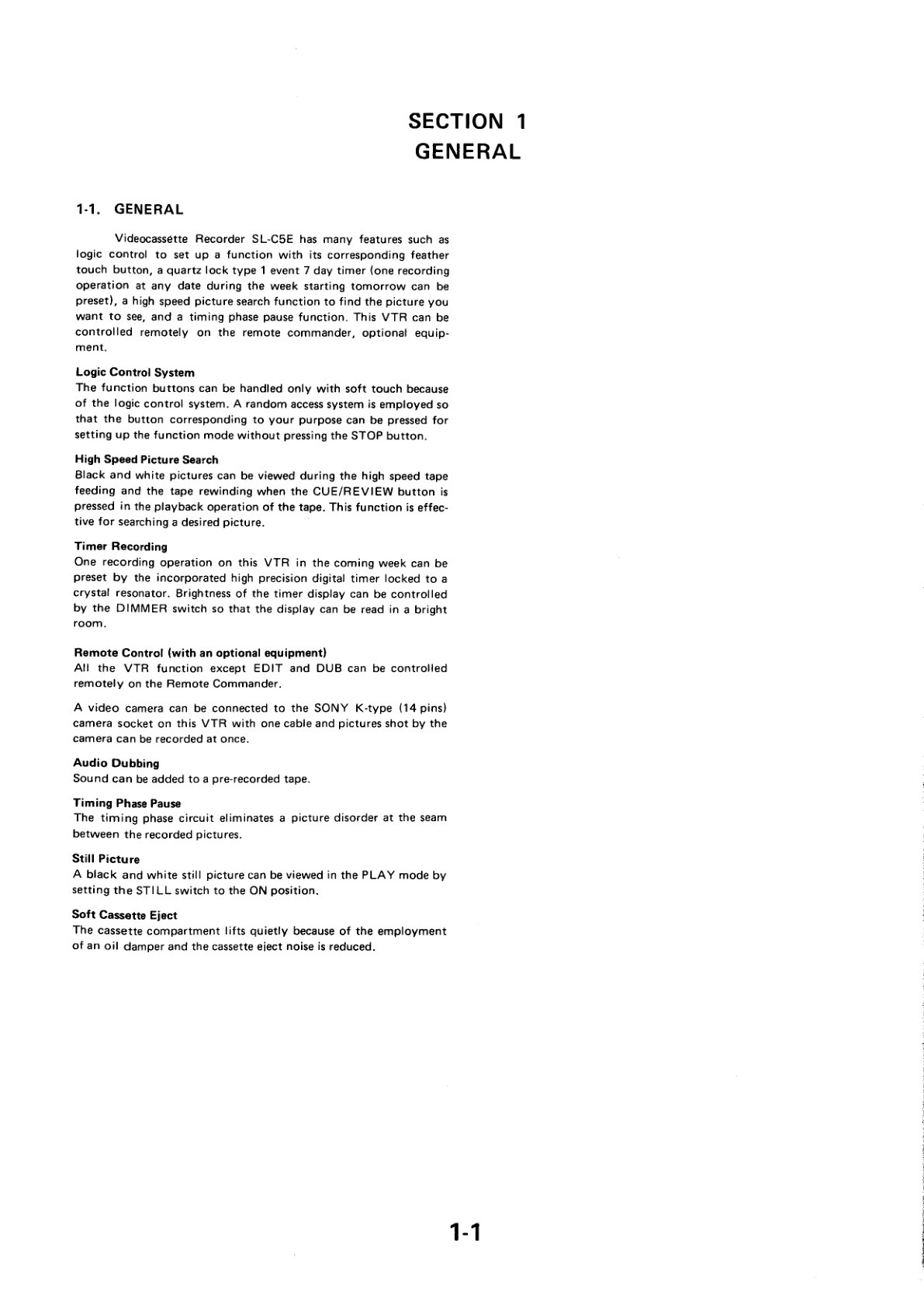

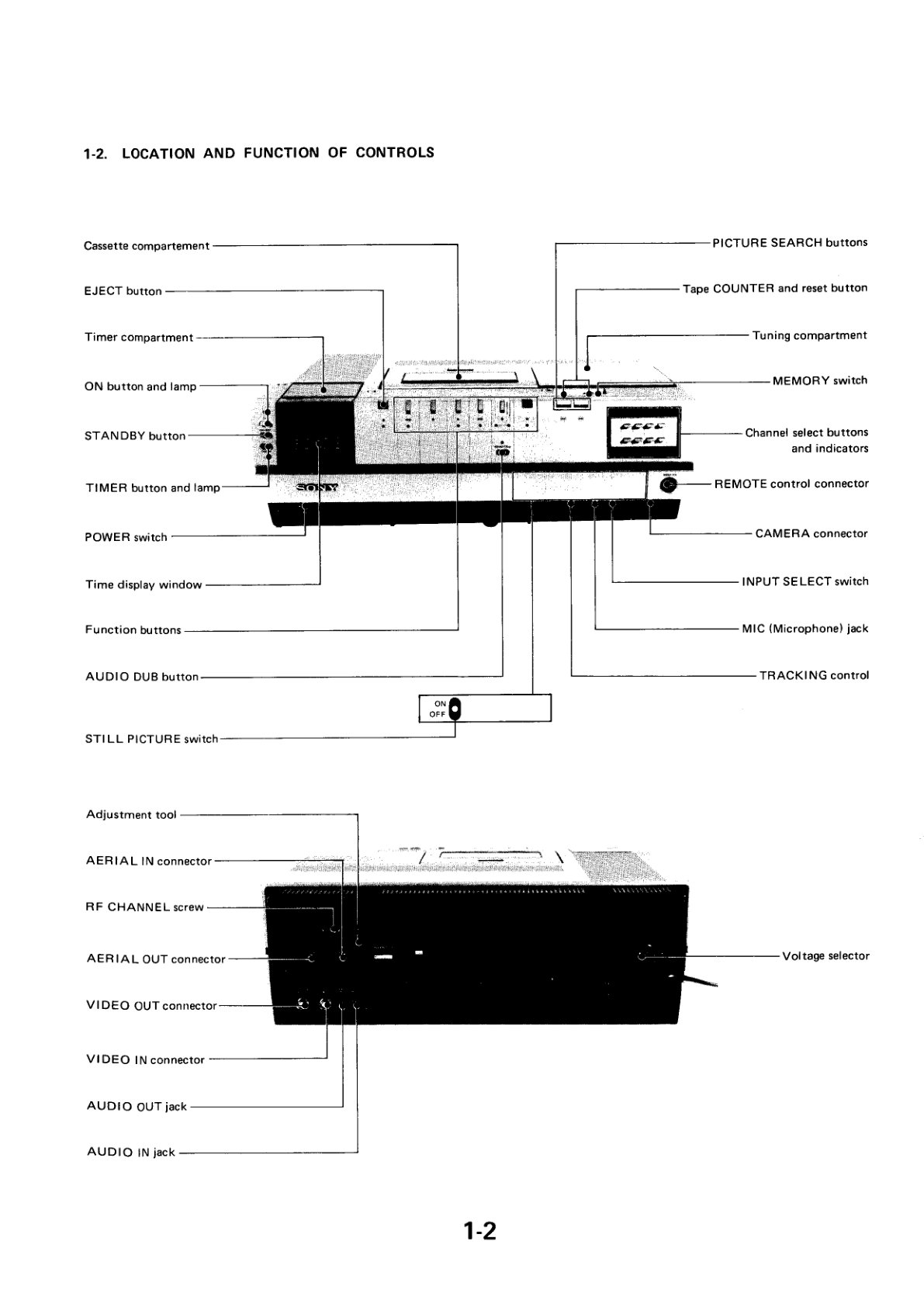

- General: controls; connection and operation (voltage, system connections, tuning, cassette, record/playback, timer, audio dubbing, camera recording, remote)
- Disassembly: cabinet, tuner IF, timer; YC-6 / AS-6 / PS-15 checks
- Block diagrams (overall, video, servo, system control, audio, power, timer, tuner) with timing charts
- PWB & schematics, exploded views (incl. RM-75 commander), electrical parts

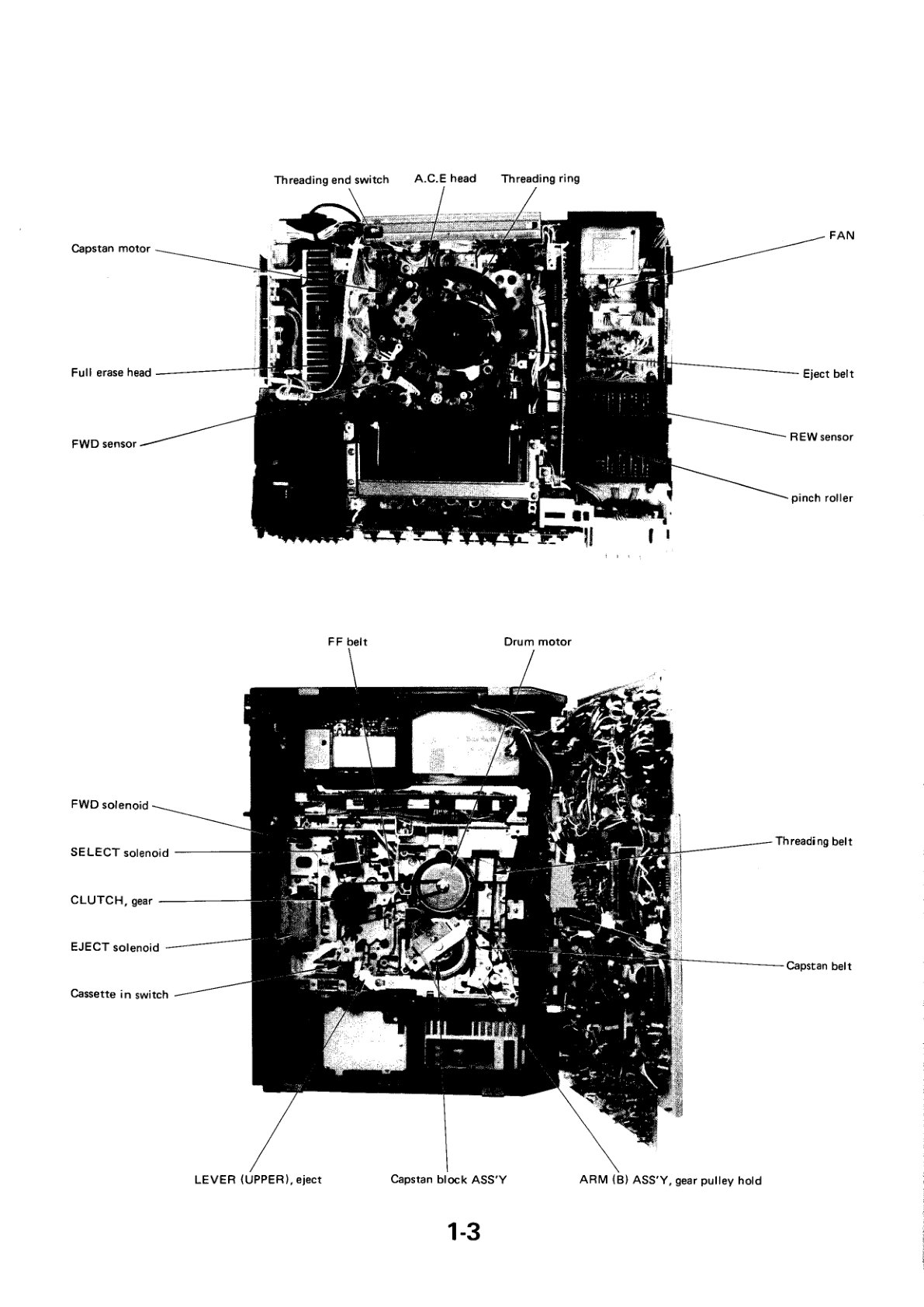

- Internal mechanical location coverage (capstan, ACE head, solenoids, belts, drum motor)
Pages: 149 · File size: 27.6 MB
Price covers PayPal base fee, per-page processing, and archive storage/transfer. Instant download only (no printed manuals).
