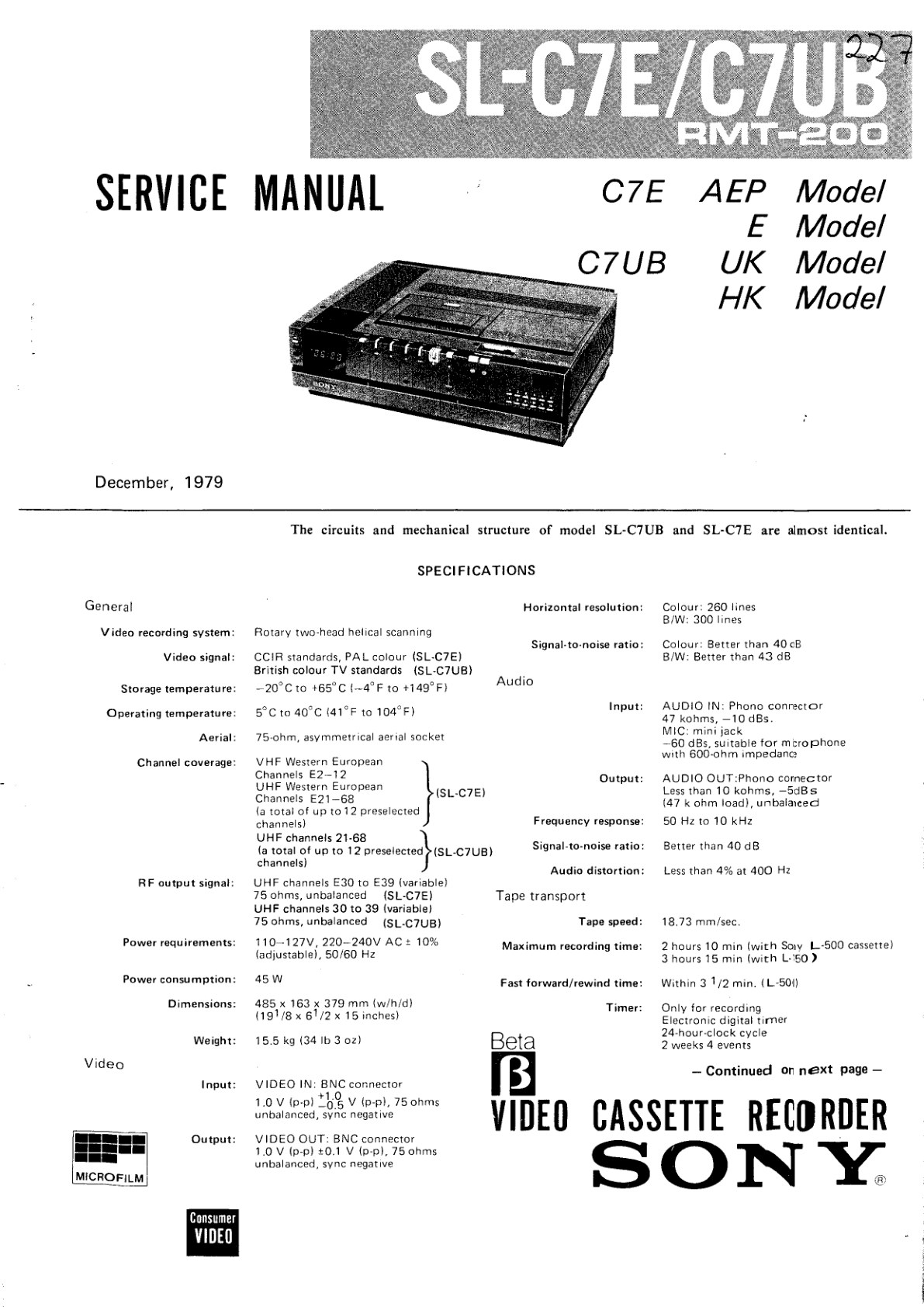

Sony SL-C7UB / SL-C7E Betamax VCR parts/service supplement (Remote Commander RMT-200; accessories include L-500 tape and 75-ohm coax).

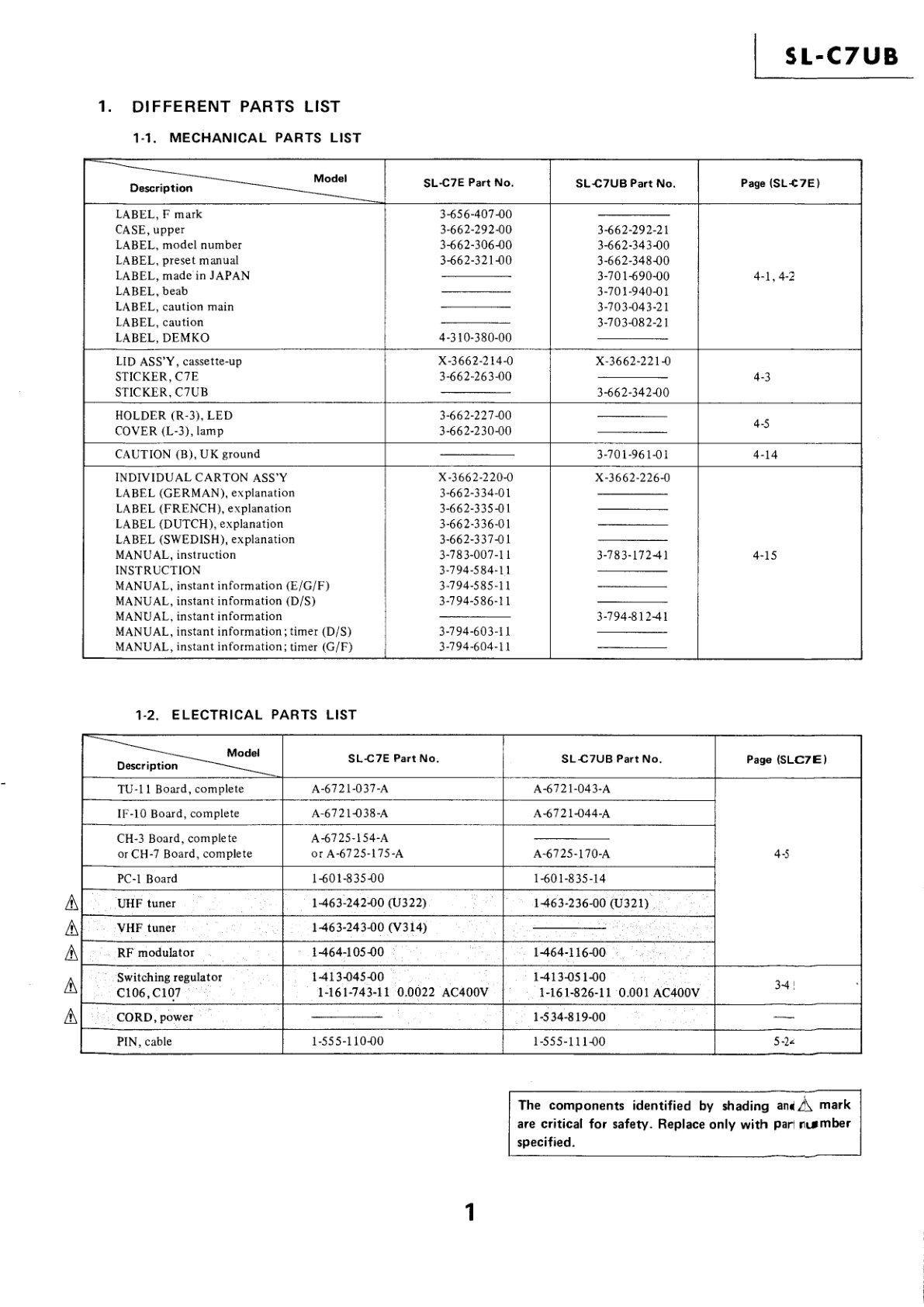

- SL-C7UB different parts list: mechanical parts (labels, case upper, cassette-up lid, LED holder, language explanation labels, instruction manuals) comparing SL-C7E vs SL-C7UB; electrical parts (complete TU-11, IF-10, CH-3/CH-7, PC-1 boards; UHF/VHF tuners; RF modulator; switching regulator; safety-marked capacitors and power cord)

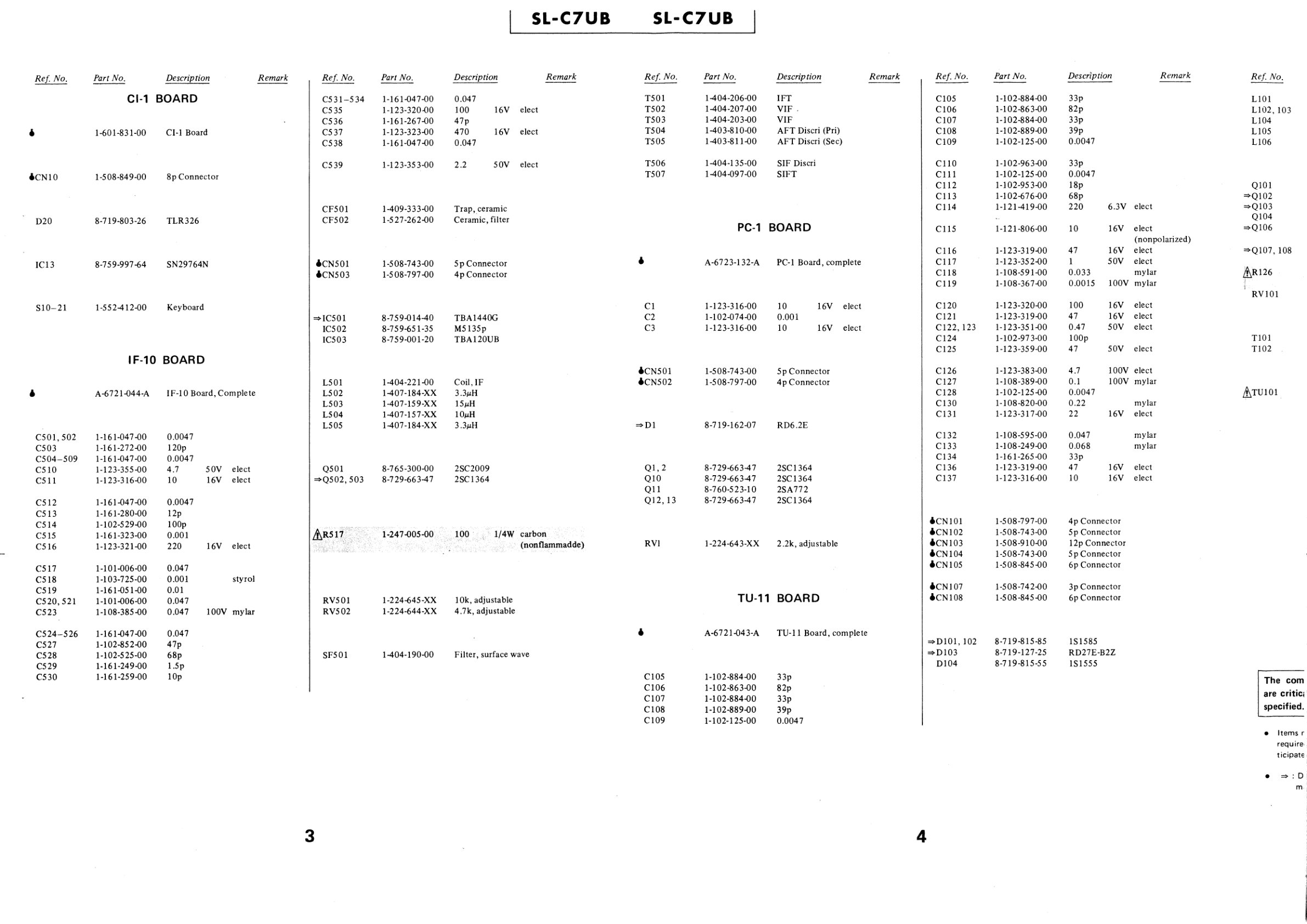

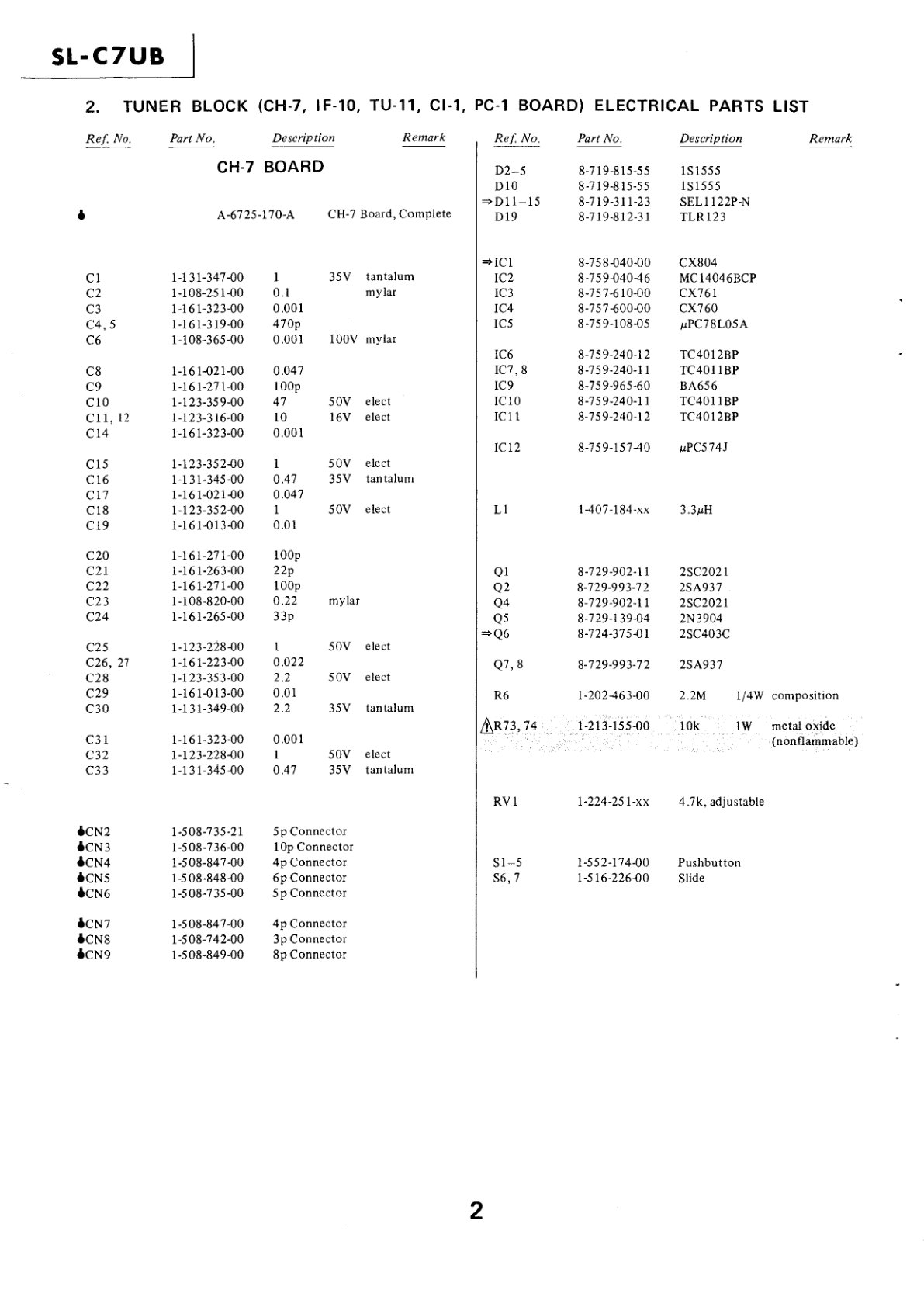

- Tuner-block electrical parts: detailed lists for CI-1 (keyboard, SN29764N), IF-10 (TBA1440G / M5135P / TBA120UB, filters, IFT/VIF/AFT/SIF transformers), PC-1, and TU-11 boards
- Printed wiring boards and schematic diagrams; exploded views

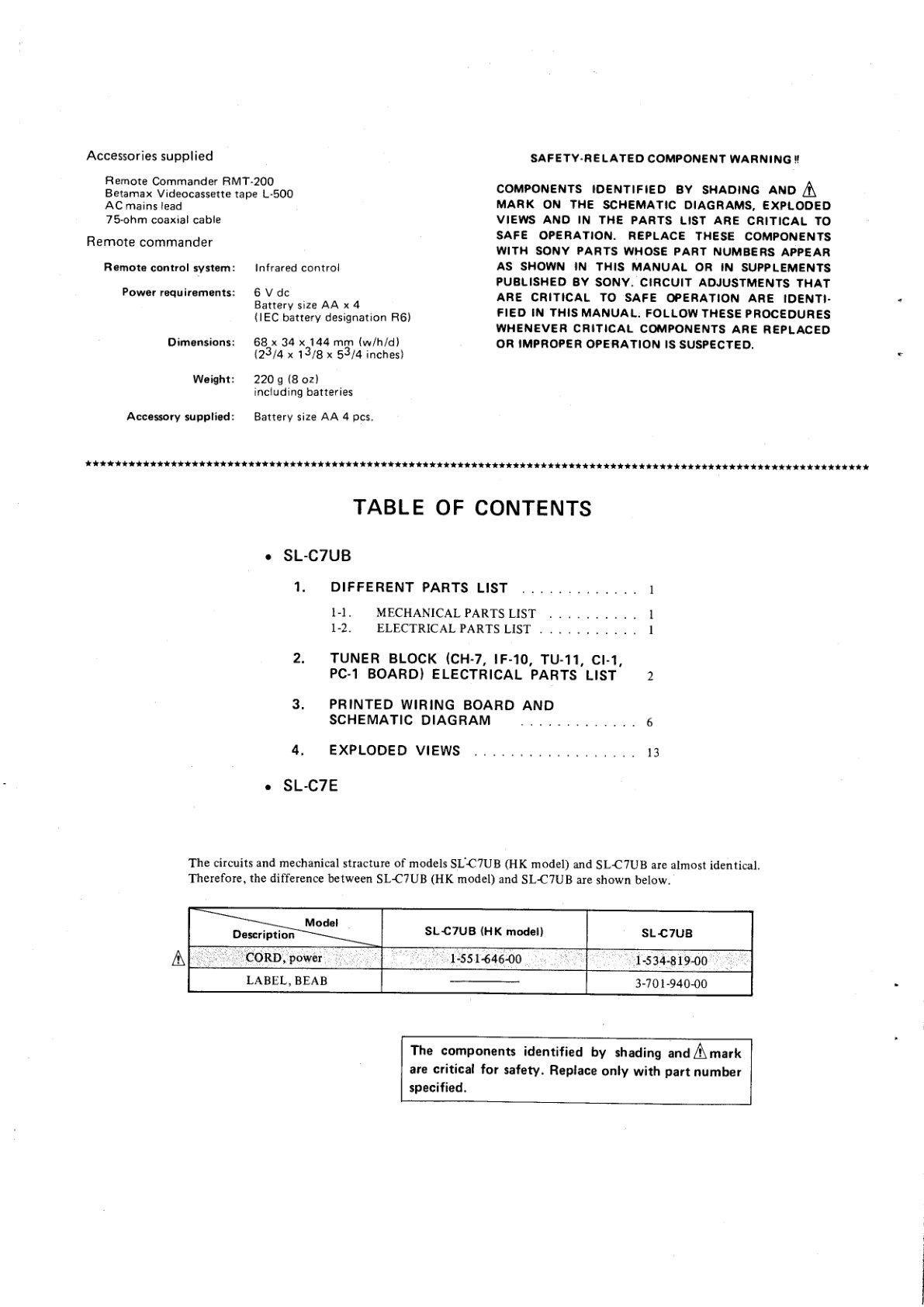

- HK vs standard SL-C7UB differences (power cord and BEAB label part numbers); safety-related component warnings for critical Sony parts; RMT-200 infrared remote specs
