Toshiba V-8600 Betamax VCR comprehensive service manual.

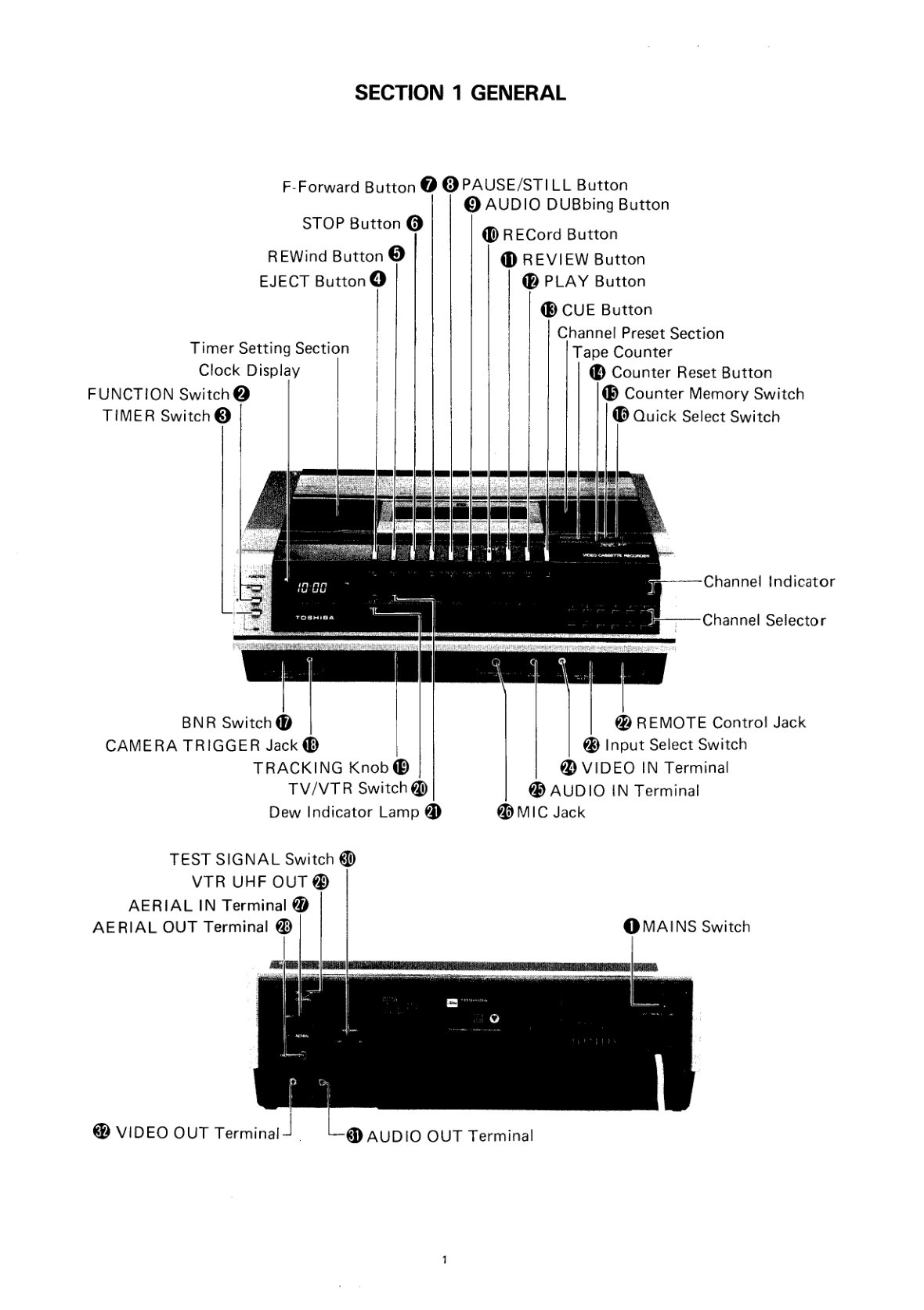

- General; block diagrams (overall, video, servo, audio, timer, power)
- Circuit description: video, chroma, servo, logic control, audio, timer, tuner, power
- Electrical adjustment (power, servo logic, video, colour, preamp, audio, tuner)

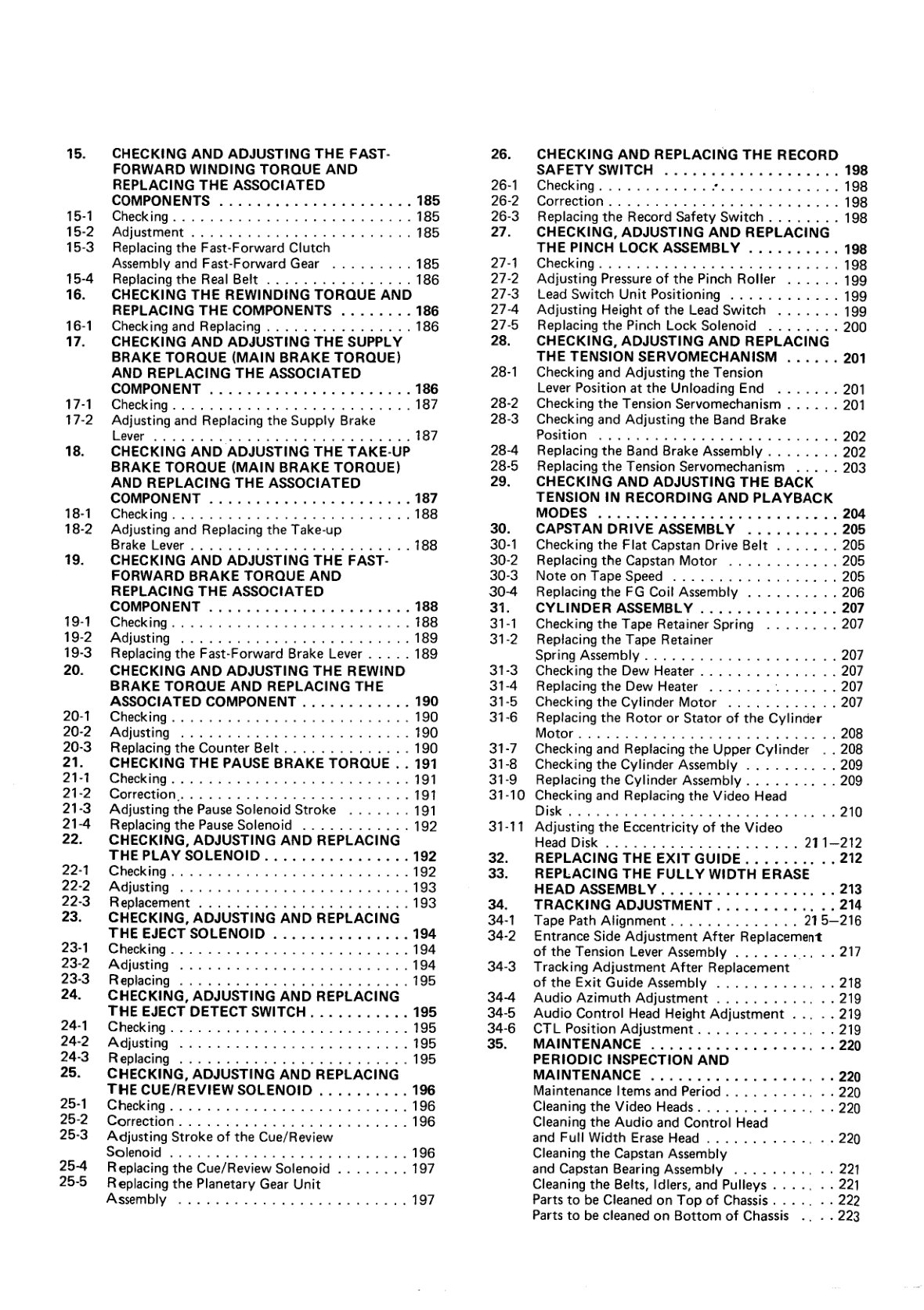

- Mechanical adjustment & replacement: cassette compartment, loading drive, reel tables, torques, FF/REW solenoids; FF/REW/brake torques; play/eject/cue solenoids; pinch lock; tension servo; back tension; capstan drive; cylinder/head disk; tracking/tape path; periodic maintenance
